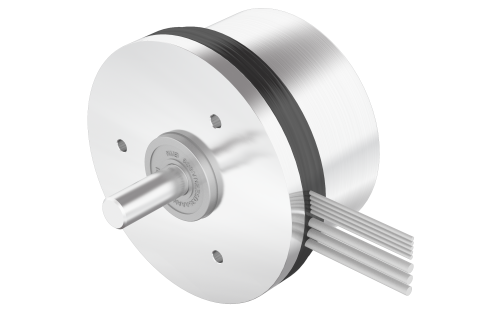

60BLWA38

Product Code: 60BLWA38.000

Technical Data

Download

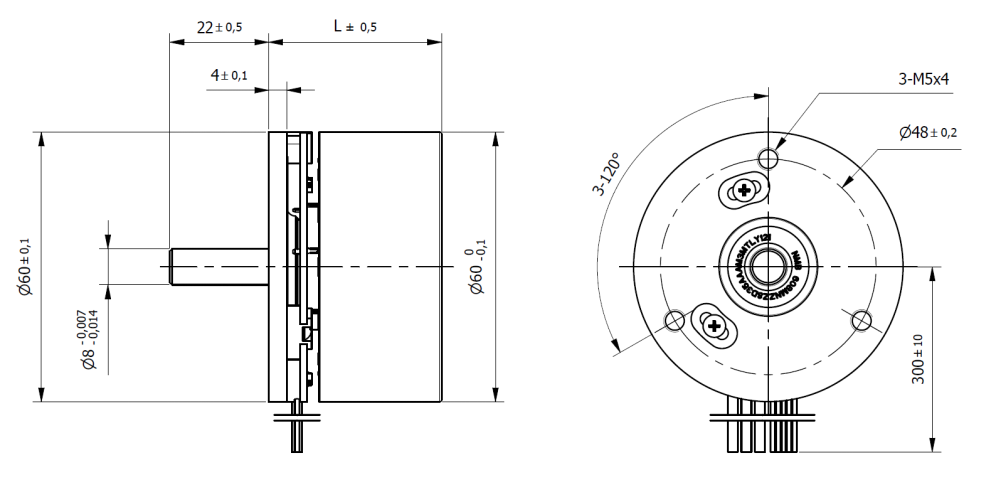

Dimensions

Size	60 mm	Length (L)	38 mm
Rated Voltage	48 Vdc	Rated Torque	0.5 Nm
Rated Speed	3400 rpm	n° of Pole	14
n° of Phase	3	Max. Peak Torque	1.5 Nm
Torque Constant	0.108 Nm/A	Rated Current	4.6 A
Max. Peak Current	14 A	No-Load Current	500 mA
Line to Line Resistance	0.59 Ohm	Line to Line Inductance	0.6 mH
Rotor Inertia	1100 gcm²	Weight	0.5 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	55 N	Max. Axial Force	12 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
