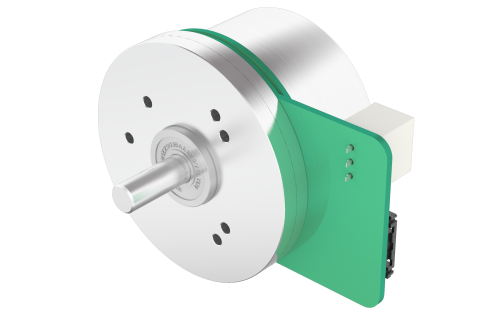

60BLW42-24V-E

Product Code: 60BLW42-24V-E.000

Technical Data

Download

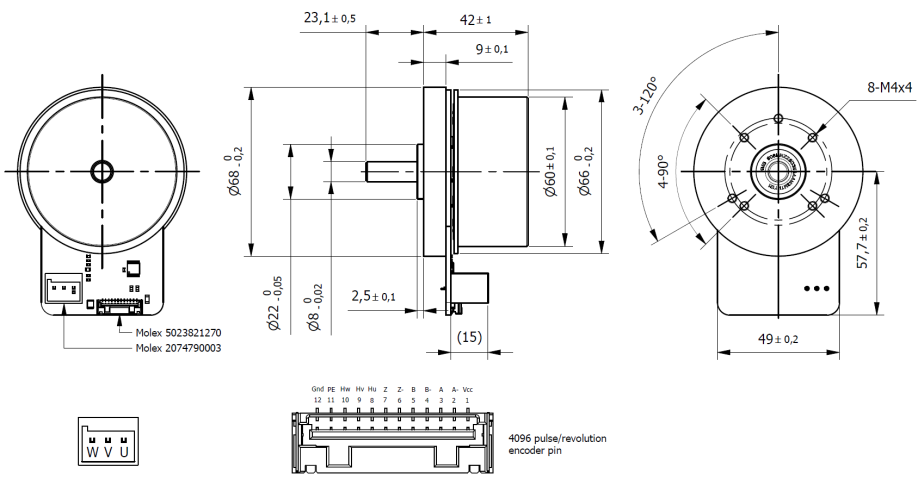

Dimensions

Size	60 mm	Length (L)	42 mm
Rated Voltage	24 Vdc	Rated Torque	0.29 Nm
Rated Speed	3500 rpm	n° of Pole	14
n° of Phase	3	Max. Peak Torque	0.87 Nm
Torque Constant	0.05 Nm/A	Rated Current	5.8 A
Max. Peak Current	17 A	No-Load Current	700 mA
Line to Line Resistance	0.25 Ohm	Line to Line Inductance	0.22 mH
Rotor Inertia	1000 gcm²	Weight	0.5 Kg
Encoder	4096 CPR magnetic incremental/ 3-channels	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (max.4N)	0.02 mm
Axial Play (max.4N)	0.08 mm	Max. Radial Force (10mm from flange)	55 N
Max. Axial Force	12 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
