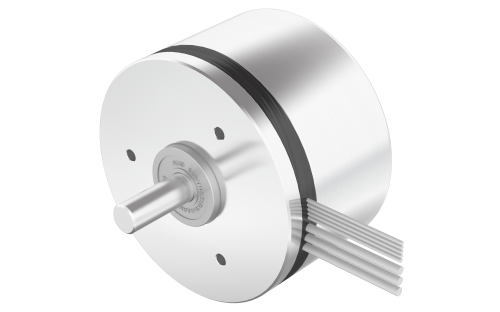

60BLW40-24V-IP54

Product Code: 60BLW40-24V-IP54.000

Technical Data

Download

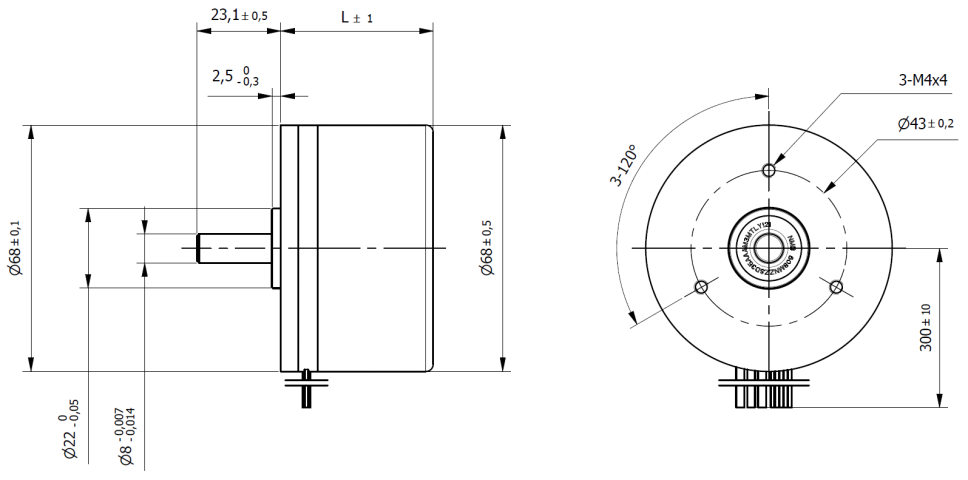

Dimensions

Size	60 mm	Length (L)	42 mm
Rated Voltage	24 Vdc	Rated Torque	0.3 Nm
Rated Speed	3700 rpm	n° of Pole	14
n° of Phase	3	Max. Peak Torque	0.9 Nm
Torque Constant	0.05 Nm/A	Rated Current	1.6 A
Max. Peak Current	18 A	No-Load Current	800 mA
Line to Line Resistance	0.3 Ohm	Line to Line Inductance	0.3 mH
Rotor Inertia	1500 gcm²	Weight	0.5 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP54
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	55 N	Max. Axial Force	12 N
Insulation Resistance (min.500 VDC)	100 Mohm
