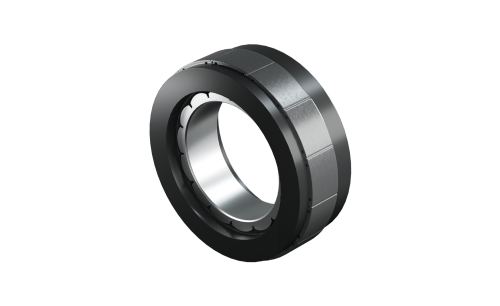

60BLF12-48V

Product Code: 60BLF12-48V

Technical Data

Download

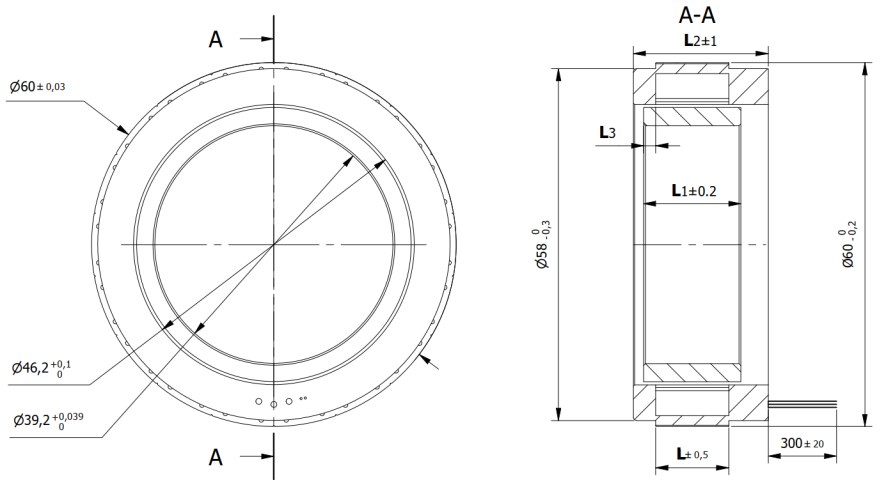

Dimensions

Stator OD	60 mm	Rotor ID	39.2 mm
Rated Voltage	48 Vdc	Rated Torque	0.45 Nm
Max. Peak Torque	1.35 Nm	Rated Speed	4000 rpm
Max. Speed	5200 rpm	n° of Pole	20
n° of Phase	3	Torque Constant	0.102 Nm/A
Rated Current	5 A	Max. Peak Current	15 A
No-Load Current	200 mA	Line to Line Resistance	0.62 Ohm
Line to Line Inductance	0.46 mH	Rotor Inertia	172 gcm²
Back EMF	6.2 Vrms/Krpm	Stator height (L)	12 mm
Rotor height (L1)	16 mm	Length (L2)	22.2 mm
Measure (L3)	2 mm	Weight	0.165 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	1000 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
