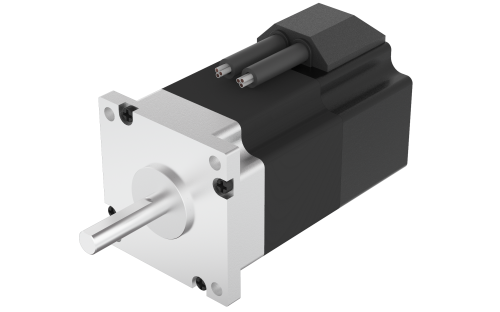

57SVA04

Product Code: 57SVA04

Technical Data

Download

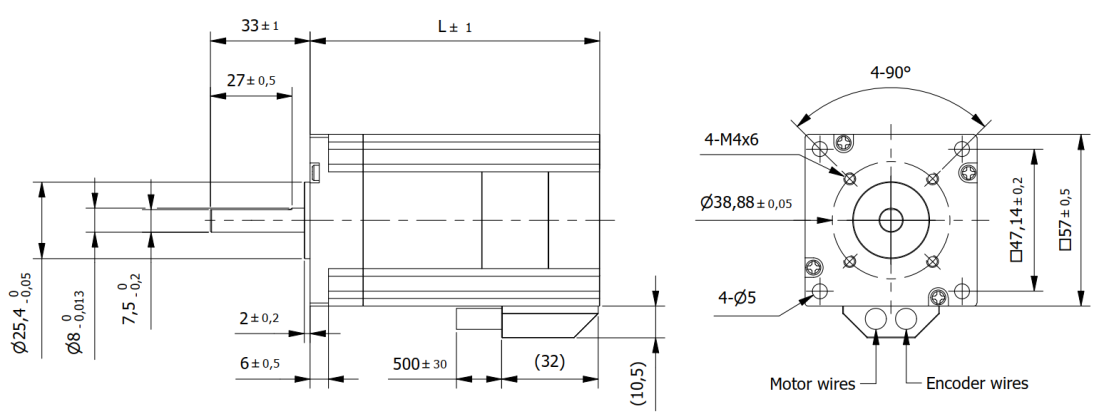

Dimensions

Size	57 mm	Length (L)	136 mm
Rated Voltage	36 Vdc	Rated Torque	0.6 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	1.8 Nm
Torque Constant	0.075 Nm/A	Rated Current	8 A
Max. Peak Current	22.5 A	No-Load Current	650 mA
Line to Line Resistance	0.5 Ohm	Line to Line Inductance	0.6 mH
Rotor Inertia	430 gcm²	Weight	1.2 Kg
Encoder	Optical - Incremental 1000 CPR / 2 Channel	Hall Effect Angle	120 °
Insulation Class	B	Protection Class	IP30
Max. Radial Force (20mm from flange)	115 N	Max. Axial Force	45 N
Dielectric strength (for 1 sec.)	650 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20 to +40 °C
