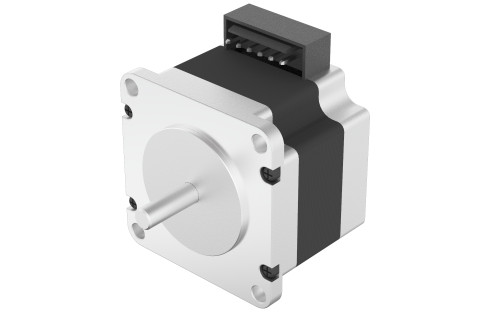

57STC56-2804AC

Product Code: 57STC56-2804AC.000

Technical Data

Download

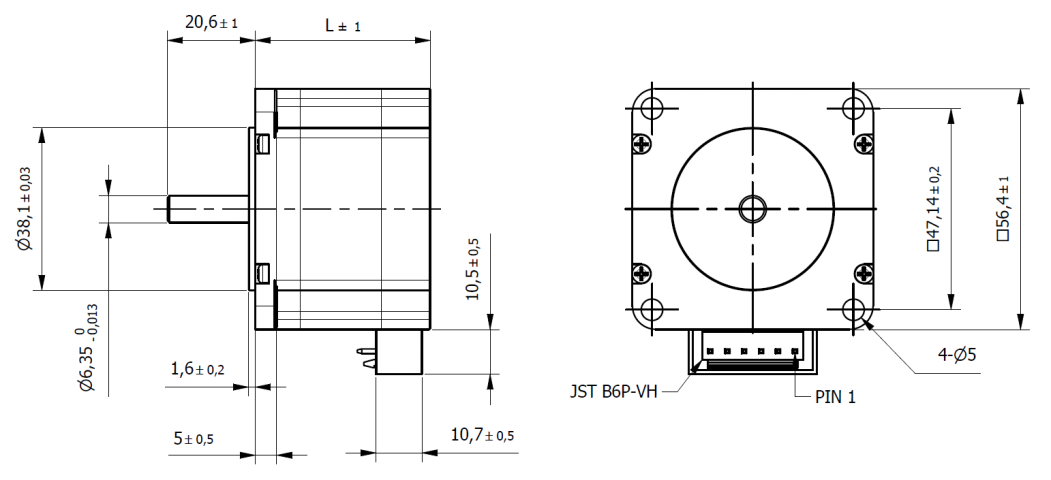

Dimensions

Series	STC	Size	57 mm
Nema	23	Length (L)	56 mm
Current/Phase	2.8 A	Holding Torque	1.4 Nm
Step Angle	1.8 °	Rated Voltage	2.8 Vdc
Resistance/Phase	1 Ohm	Inductance/Phase	3.2 mH
Rotor Inertia	300 gcm²	Detent Torque	0.039 Nm
N° of Leads	4	Weight	0.70 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	20 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
