Home Products > Stepper motors > Hybrid Stepper motors > 57SH

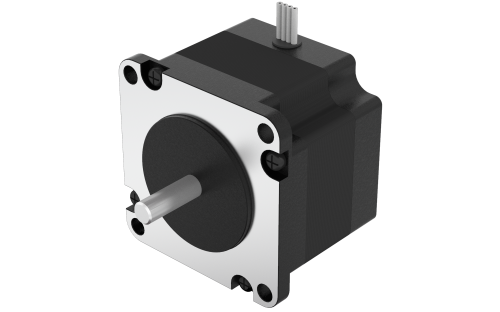

57SH76-2A

Product Code: 57SH76-2A.000

Technical Data

Download

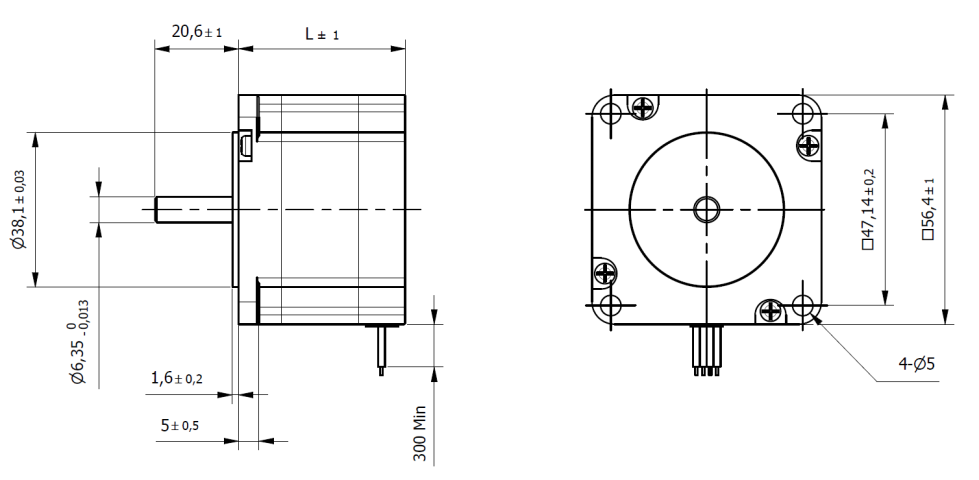

Dimensions

Series	SH	Size	57 mm
Nema	23	Length (L)	76 mm
Current/Phase	2 A	Holding Torque	1.35 Nm
Step Angle	1.8 °	Rated Voltage	4.5 Vdc
Resistance/Phase	2.25 Ohm	Inductance/Phase	3.6 mH
Rotor Inertia	480 gcm²	Detent Torque	0.067 Nm
N° of Leads	6	Weight	1 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
