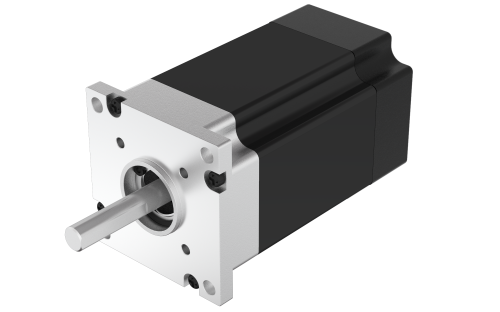

57BLB60

Product Code: 57BLB60.000

Technical Data

Download

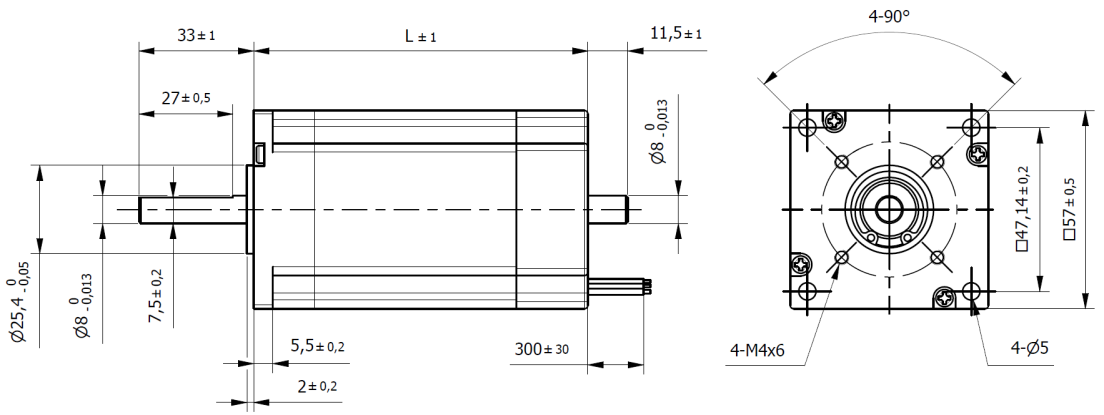

Dimensions

Series	BL	Size	57 mm
Length (L)	96 mm	Weight	1 Kg
Rated Voltage	36 Vdc	Rated Torque	0.45 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	1.35 Nm
Torque Constant	0.08 Nm/A	Rated Current	5.4 A
Max. Peak Current	18.2 A	No-Load Current	550 mA
Line to Line Resistance	0.8 Ohm	Line to Line Inductance	0.8 mH
Rotor Inertia	320 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.025 mm
Max. Radial Force (10mm from flange)	115 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
