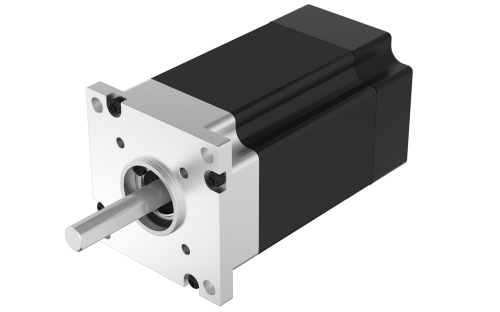

57BLB40

Product Code: 57BLB40.000

Technical Data

Download

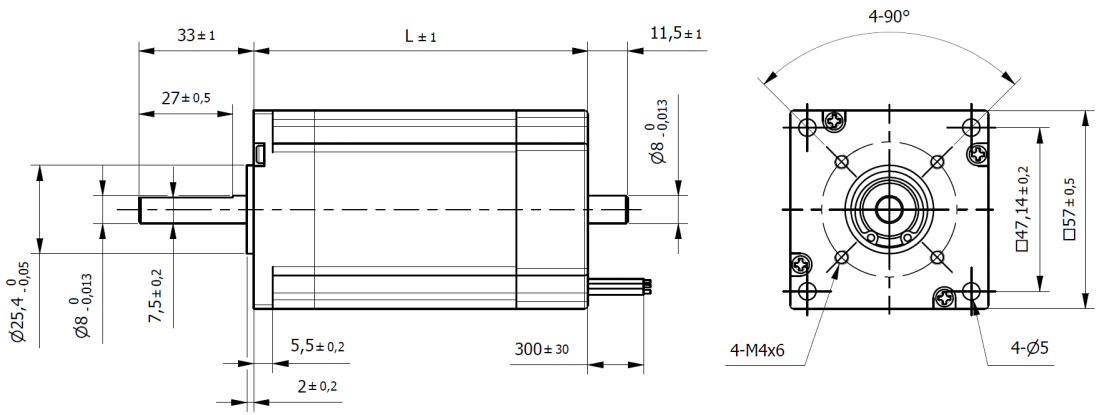

Dimensions

Series	BL	Size	57 mm
Length (L)	76 mm	Weight	0.8 Kg
Rated Voltage	36 Vdc	Rated Torque	0.3 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.9 Nm
Torque Constant	0.08 Nm/A	Rated Current	4 A
Max. Peak Current	12.3 A	No-Load Current	400 mA
Line to Line Resistance	1.2 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	210 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.025 mm
Max. Radial Force (10mm from flange)	115 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
