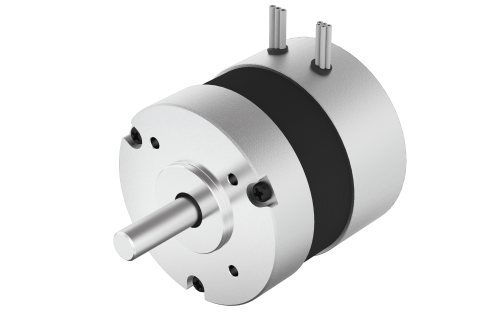

57BL94

Product Code: 57BL94.000

Technical Data

Download

n° of Pole	4	Series	BL
Size	57 mm	Length (L)	93.6 mm
Weight	0.95 Kg	Rated Voltage	36 Vdc
Rated Torque	0.33 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	1 Nm
Torque Constant	0.065 Nm/A	Rated Current	5.08 A
Max. Peak Current	16 A	No-Load Current	450 mA
Line to Line Resistance	0.45 Ohm	Line to Line Inductance	1.5 mH
Rotor Inertia	173 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (10mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
