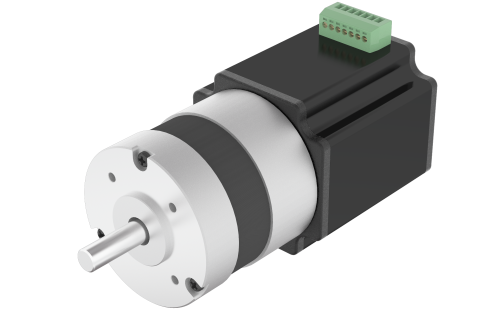

57BL94-IE

Product Code: 57BL94-IE.000

Technical Data

Download

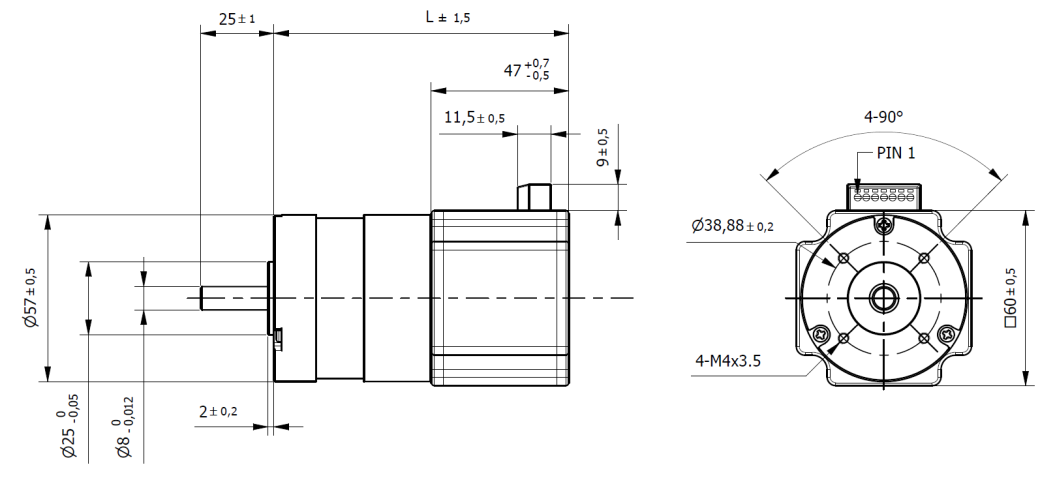

Dimensions

Size	57 mm	Length (L)	133.5 mm
Rated Torque	0.33 Nm	Rated Current	5.08 A
Rated Voltage	36 Vdc	Rated Speed	4000 rpm
n° of Pole	4	n° of Phase	3
Max. Peak Torque	1 Nm	Torque Constant	0.065 Nm/A
Max. Peak Current	16 A	No-Load Current	450 mA
Line to Line Resistance	0.45 Ohm	Line to Line Inductance	1.5 mH
Rotor Inertia	173 gcm²	Weight	0.95 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (460g load)	0.025 mm	Axial Play (4000g load)	0.025 mm
Max. Radial Force (10mm from flange)	75 N	Max. Axial Force	15 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
