Home Products > Motors with integrated Controller > Brushless DC motors with Speed controller > 57BL -IE

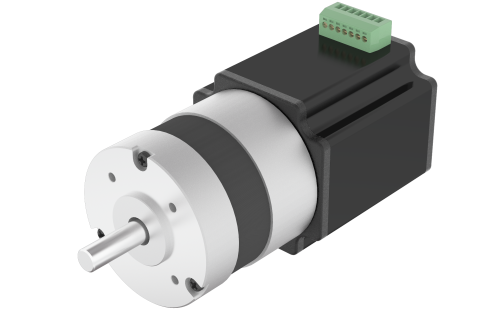

57BL74-IE

Product Code: 57BL74-IE.000

Technical Data

Download

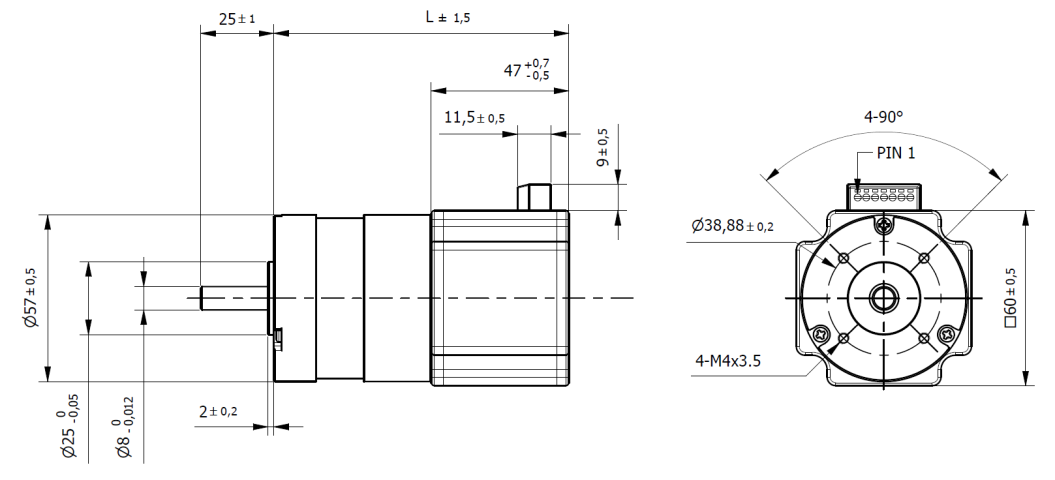

Dimensions

Size	57 mm	Length (L)	122 mm
Rated Torque	0.22 Nm	Rated Current	3.67 A
Rated Voltage	36 Vdc	Rated Speed	4000 rpm
n° of Pole	4	n° of Phase	3
Max. Peak Torque	0.7 Nm	Torque Constant	0.06 Nm/A
Max. Peak Current	12 A	No-Load Current	400 mA
Line to Line Resistance	0.58 Ohm	Line to Line Inductance	2 mH
Rotor Inertia	119 gcm²	Weight	0.72 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (460g load)	0.025 mm	Axial Play (4000g load)	0.025 mm
Max. Radial Force (10mm from flange)	75 N	Max. Axial Force	15 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
