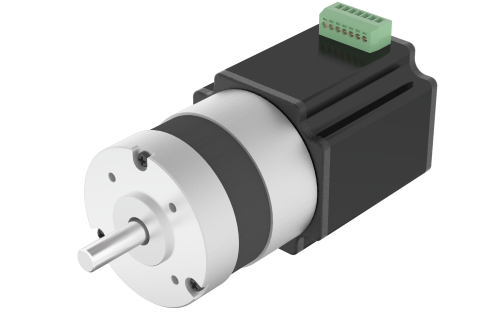

57BL54-IE

Product Code: 57BL54-IE.000

Technical Data

Download

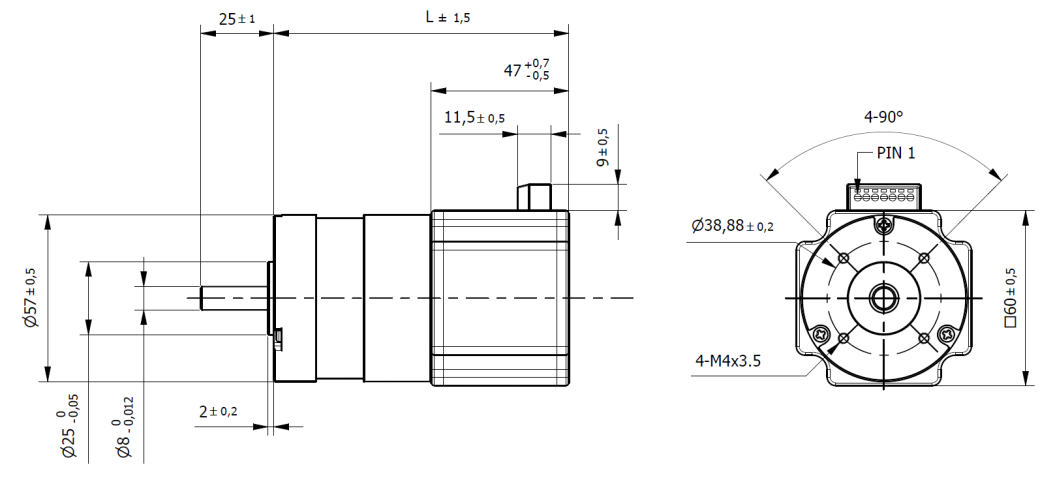

Dimensions

Size	57 mm	Length (L)	102 mm
Rated Torque	0.11 Nm	Rated Current	1.80 A
Rated Voltage	36 Vdc	Rated Speed	4000 rpm
n° of Pole	4	n° of Phase	3
Max. Peak Torque	0.39 Nm	Torque Constant	0.061 Nm/A
Max. Peak Current	6.8 A	No-Load Current	300 mA
Line to Line Resistance	1.5 Ohm	Line to Line Inductance	4.4 mH
Rotor Inertia	75 gcm²	Weight	0.44 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (460g load)	0.025 mm	Axial Play (4000g load)	0.025 mm
Max. Radial Force (10mm from flange)	75 N	Max. Axial Force	15 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
