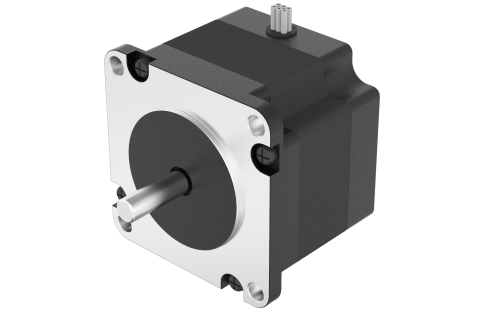

573P59-5806A

Product Code: 573P59-5806A.000

Technical Data

Download

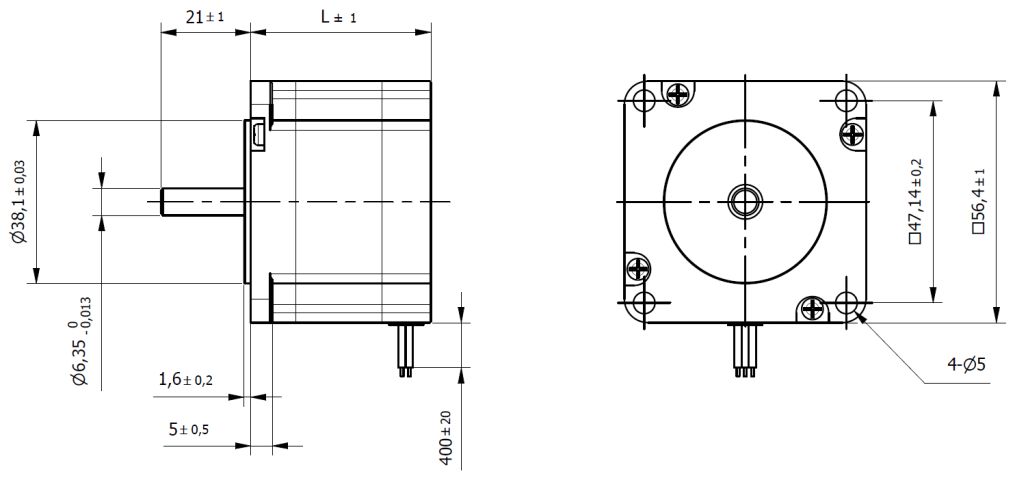

Dimensions

Size	57 mm	Nema	23
Length (L)	79 mm	Current/Phase	5.8 A
Holding Torque	1.5 Nm	Step Angle	1.2 °
Rated Voltage	6 Vdc	Resistance/Phase	1.05 Ohm
Inductance/Phase	2.4 mH	Rotor Inertia	480 gcm²
N° of Leads	6	Weight	1.1 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
