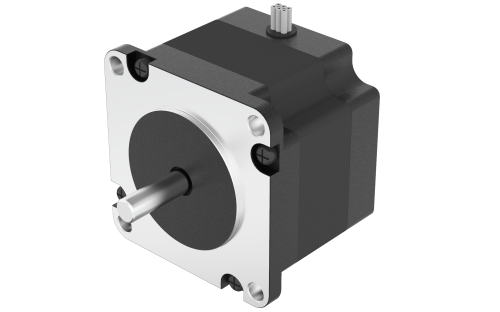

573P42-5206A

Size 57 mm | Nema 23 | Length (L) 42 mm | Current/Phase 5.2 A | Holding Torque 0.45 Nm | Step Angle 1.2 °

Product Code: 573P42-5206A.000

Technical Data

Download

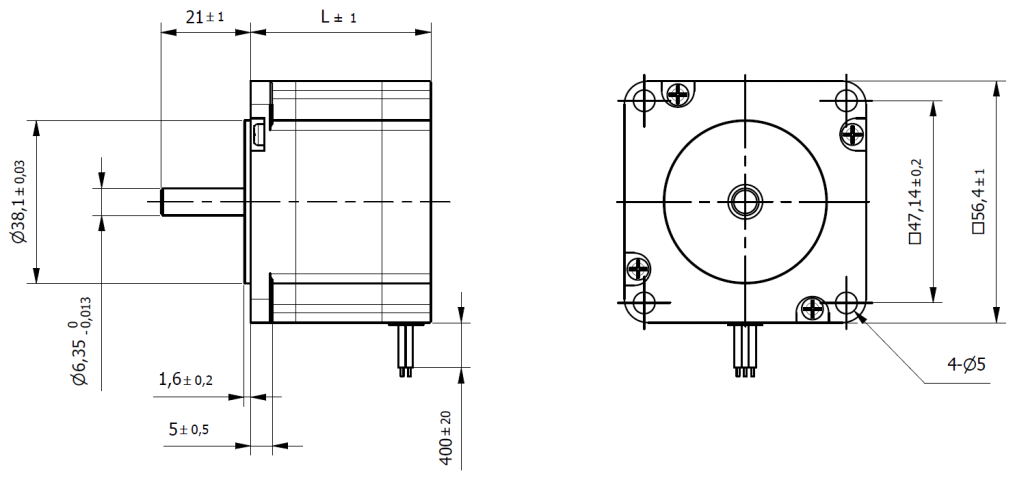

Dimensions

Size	57 mm	Nema	23
Length (L)	42 mm	Current/Phase	5.2 A
Holding Torque	0.45 Nm	Step Angle	1.2 °
Rated Voltage	6.76 Vdc	Resistance/Phase	1.3 Ohm
Inductance/Phase	1.4 mH	Rotor Inertia	110 gcm²
N° of Leads	6	Weight	0.45 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
