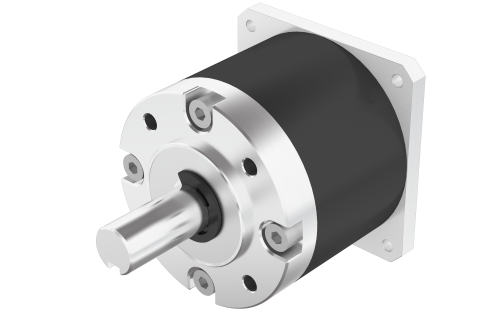

56JMS-3-65.03

Product Code: 56JMS-3-65.03.000

Technical Data

Download

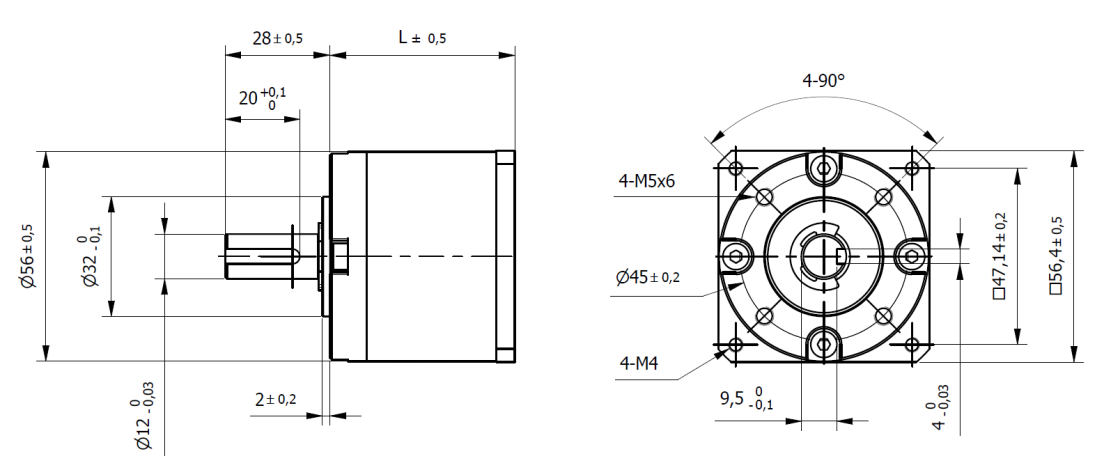

Dimensions

Series	JMS	Size	56 mm
Length (L)	60.8 mm	Stages	3
Reduction Ratio	65.03	Nominal Output Torque	30 Nm
Recommended Input Speed	4000 rpm	Max. Output Torque	90 Nm
Efficiency	73 %	Average Backlash No-load	≤1,5 °
Weight	765 g	Max. Radial load	300 N
Max. Axial load	200 N	Radial Play	<0.08mm
Axial Play	<0.4 mm	Press-Fit Max.	300 N
Operating Temperature	-20°C +80°C	Bearing output	Ball Bearings
