Home Products > Gearboxes > Planetary gearboxes > 56JMS

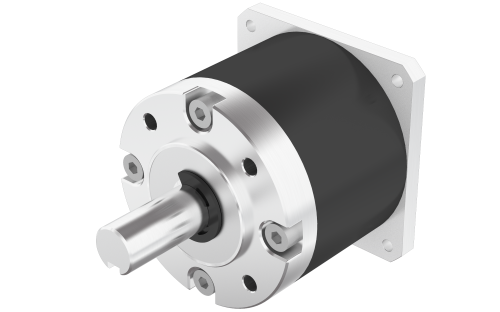

56JMS-2-18.06

Product Code: 56JMS-2-18.06.000

Technical Data

Download

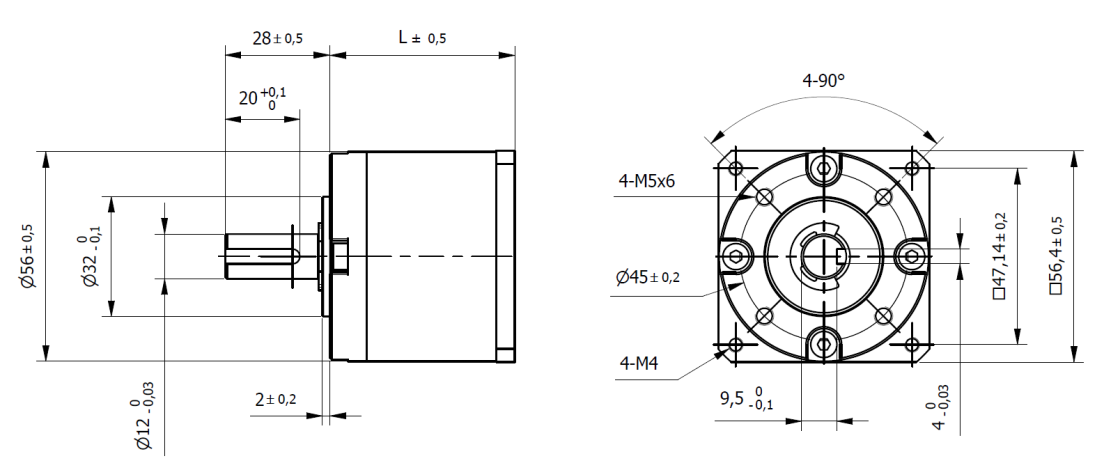

Dimensions

Series	JMS	Size	56 mm
Length (L)	49.4 mm	Stages	2
Reduction Ratio	18.06	Nominal Output Torque	15 Nm
Recommended Input Speed	4000 rpm	Max. Output Torque	60 Nm
Efficiency	81 %	Average Backlash No-load	≤1,2 °
Weight	610 g	Max. Radial load	300 N
Max. Axial load	200 N	Radial Play	<0.08mm
Axial Play	<0.4 mm	Press-Fit Max.	300 N
Operating Temperature	-20°C +80°C	Bearing output	Ball Bearings
