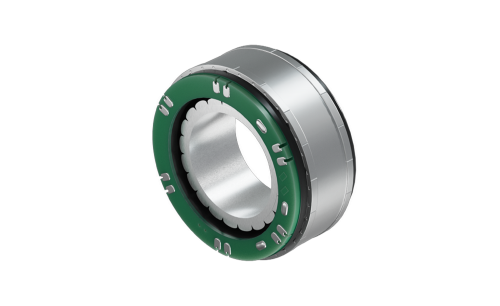

50BLF08-48V

Product Code: 50BLF08-48V

Technical Data

Download

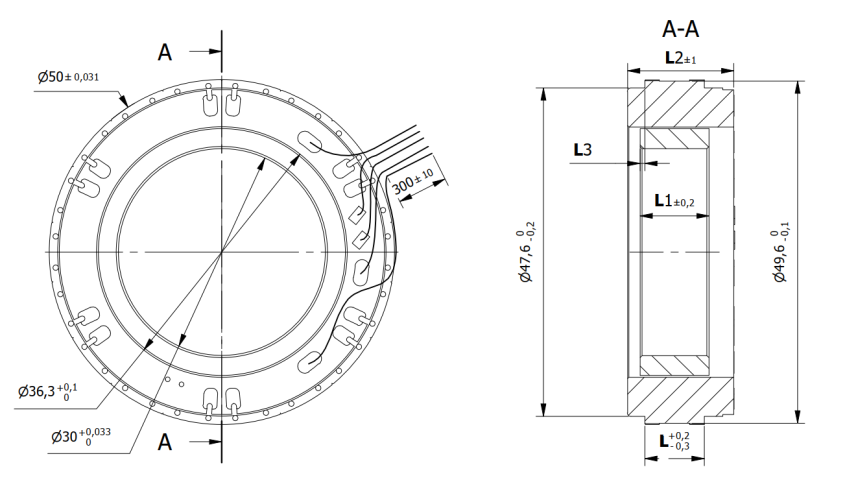

Dimensions

Stator OD	50 mm	Rotor ID	30 mm
Rated Voltage	48 Vdc	Rated Torque	0.3 Nm
Max. Peak Torque	0.96 Nm	Rated Speed	5000 rpm
Max. Speed	6200 rpm	n° of Pole	20
n° of Phase	3	Torque Constant	0.089 Nm/A
Rated Current	3.6 A	Max. Peak Current	11.6 A
No-Load Current	400 mA	Line to Line Resistance	0.93 Ohm
Line to Line Inductance	0.46 mH	Rotor Inertia	56.36 gcm²
Back EMF	5.4 Vrms/Krpm	Stator height (L)	8.6 mm
Rotor height (L1)	10 mm	Length (L2)	15.4 mm
Measure (L3)	0.7 mm	Weight	0.105 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	1000 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
