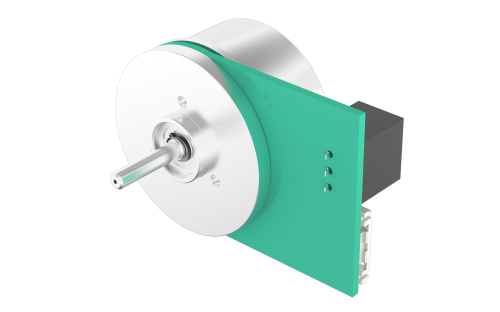

45BLW29-E

Product Code: 45BLW29-24V-E.000

Technical Data

Download

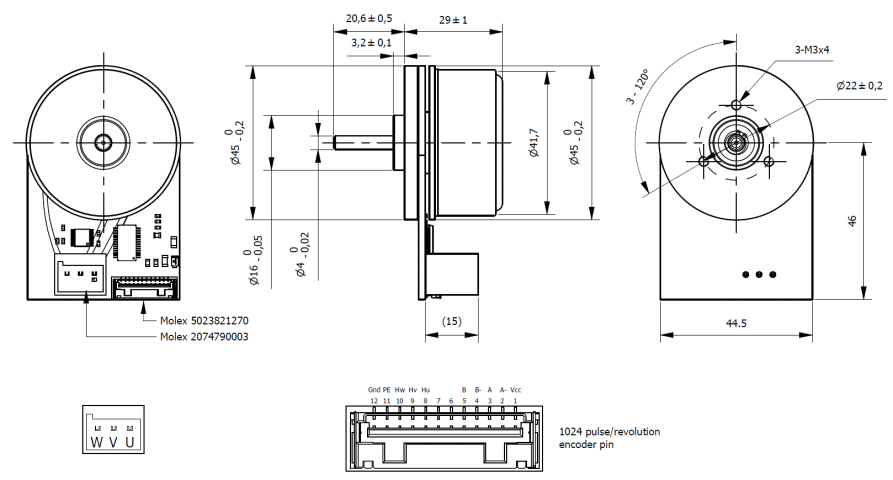

Dimensions

Size	45 mm	Length (L)	29 mm
Rated Voltage	24 Vdc	Rated Torque	0.13 Nm
Rated Speed	4840 rpm	n° of Pole	16
n° of Phase	3	Max. Peak Torque	0.39 Nm
Torque Constant	0.037 Nm/A	Rated Current	3.5 A
Max. Peak Current	10 A	No-Load Current	500 mA
Line to Line Resistance	0.56 Ohm	Line to Line Inductance	0.27 mH
Rotor Inertia	181 gcm²	Weight	0.16 Kg
Encoder	1024 CPR magnetic incremental/ 2-channels	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (max.4N)	0.02 mm
Axial Play (max.4N)	10 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
