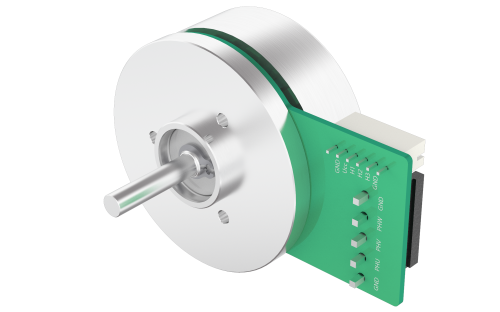

45BLW27 Connector

Product Code: 45BLW27

Buy online:

Technical Data

Download

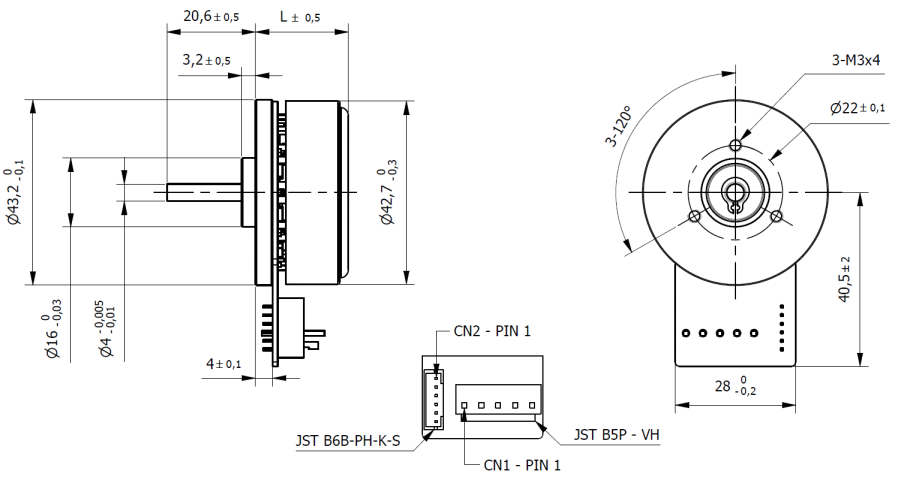

Dimensions

Size	45 mm	Length (L)	27 mm
Rated Voltage	24 Vdc	Rated Torque	0.13 Nm
Rated Speed	4840 rpm	n° of Pole	16
n° of Phase	3	Max. Peak Torque	0.39 Nm
Torque Constant	0.037 Nm/A	Rated Current	3.51 A
Max. Peak Current	10 A	No-Load Current	430 mA
Line to Line Resistance	0.61 Ohm	Line to Line Inductance	0.27 mH
Rotor Inertia	180 gcm²	Weight	0.15 Kg
Hall Effect Angle	120 °	Shaft run out	0.03 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
