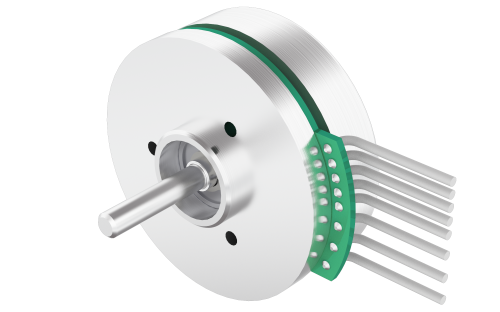

45BLW21 Wires

Product Code: 45BLW21-W.000

Technical Data

Download

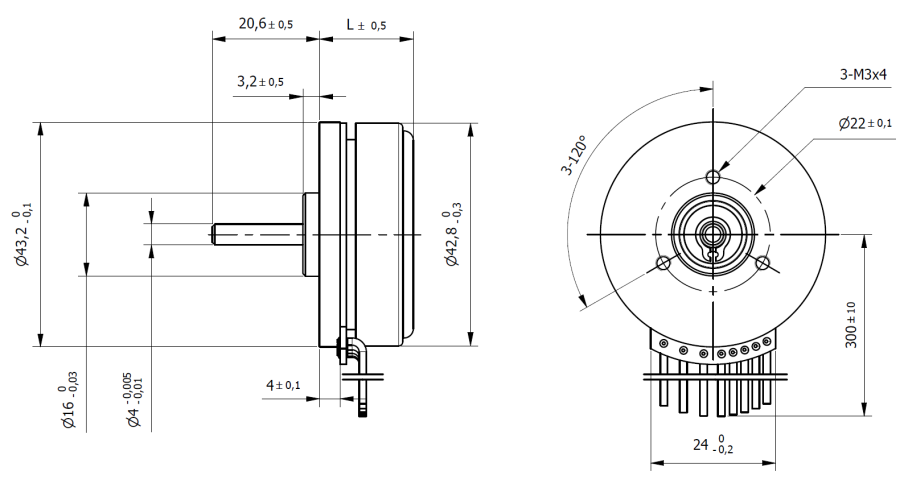

Dimensions

Size	45 mm	Length (L)	21 mm
Rated Voltage	24 Vdc	Rated Torque	0.084 Nm
Rated Speed	5260 rpm	n° of Pole	16
n° of Phase	3	Max. Peak Torque	0.25 Nm
Torque Constant	0.033 Nm/A	Rated Current	2.55 A
Max. Peak Current	7 A	No-Load Current	380 mA
Line to Line Resistance	0.8 Ohm	Line to Line Inductance	0.33 mH
Rotor Inertia	135 gcm²	Weight	0.12 Kg
Hall Effect Angle	120 °	Shaft run out	0.03 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
