45BLW - wires

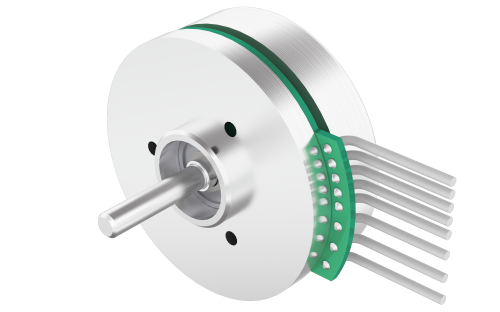

45BLW18 Wires
Product Code: 45BLW18-W.000
Technical Data
Download

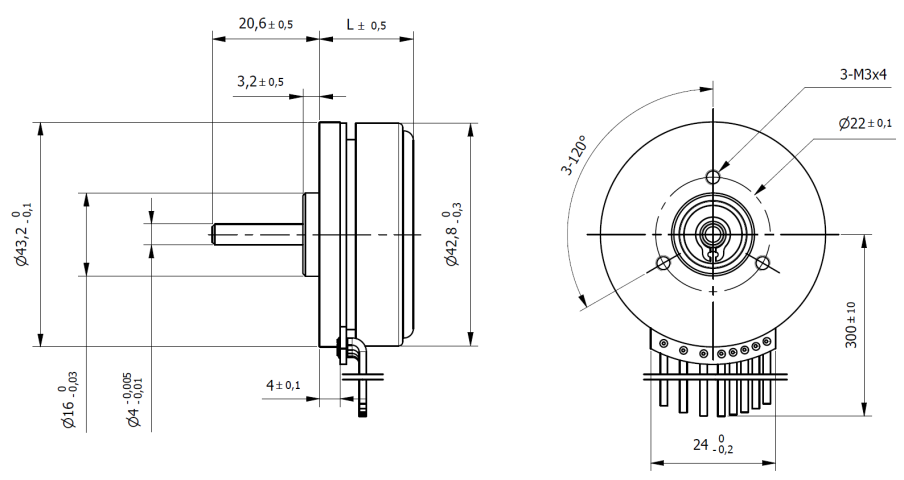

Dimensions
Size
45 mm
Length (L)
18 mm
Rated Voltage
24 Vdc
Rated Torque
0.05 Nm
Rated Speed
5000 rpm
n° of Pole
16
n° of Phase
3
Max. Peak Torque
0.15 Nm
Torque Constant
0.031 Nm/A
Rated Current
1.61 A
Max. Peak Current
4.8 A
No-Load Current
250 mA
Line to Line Resistance
1.83 Ohm
Line to Line Inductance
0.59 mH
Rotor Inertia
99 gcm
2
Weight
0.08 Kg
Hall Effect Angle
120 °
Shaft run out
0.03 mm
Insulation Class
B
Protection Class
IP40
Radial Play (450g load)
0.02 mm
Axial Play (450g load)
0.14 mm
Max. Radial Force (10mm from flange)
28 N
Max. Axial Force
10 N
Dielectric Strength (for 1min.)
500 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
