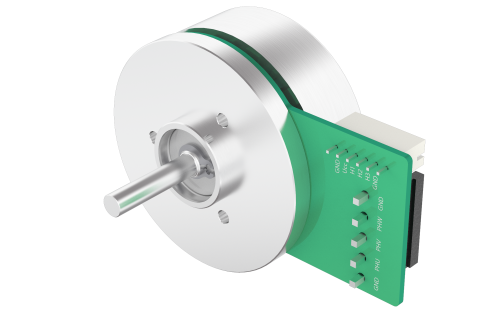

45BLW18 Connector

Product Code: 45BLW18.000

Buy online:

Technical Data

Download

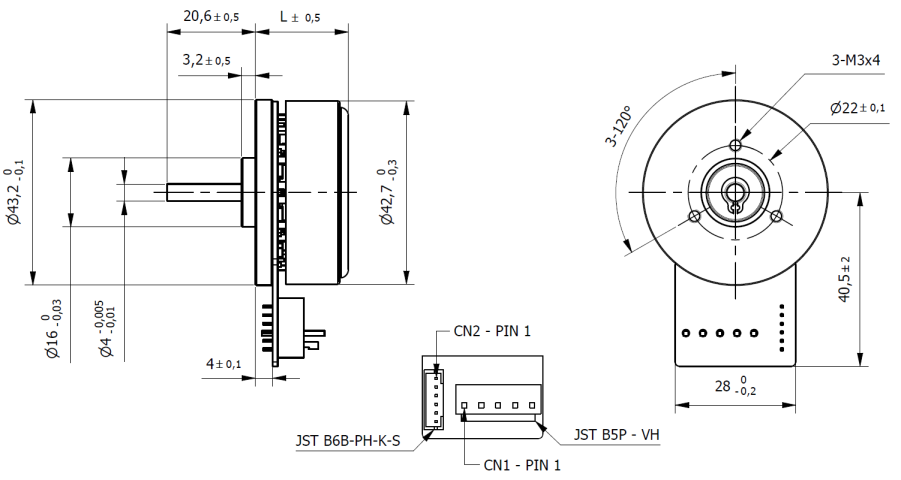

Dimensions

Size	45 mm	Length (L)	18 mm
Rated Voltage	24 Vdc	Rated Torque	0.05 Nm
Rated Speed	5000 rpm	n° of Pole	16
n° of Phase	3	Max. Peak Torque	0.15 Nm
Torque Constant	0.031 Nm/A	Rated Current	1.61 A
Max. Peak Current	4.8 A	No-Load Current	250 mA
Line to Line Resistance	1.83 Ohm	Line to Line Inductance	0.59 mH
Rotor Inertia	100 gcm²	Weight	0.08 Kg
Hall Effect Angle	120 °	Shaft run out	0.03 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
