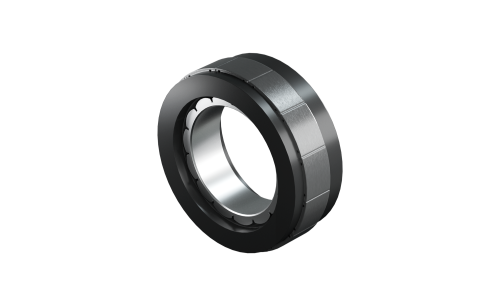

43BLF08-48V

Product Code: 43BLF08-48V

Technical Data

Download

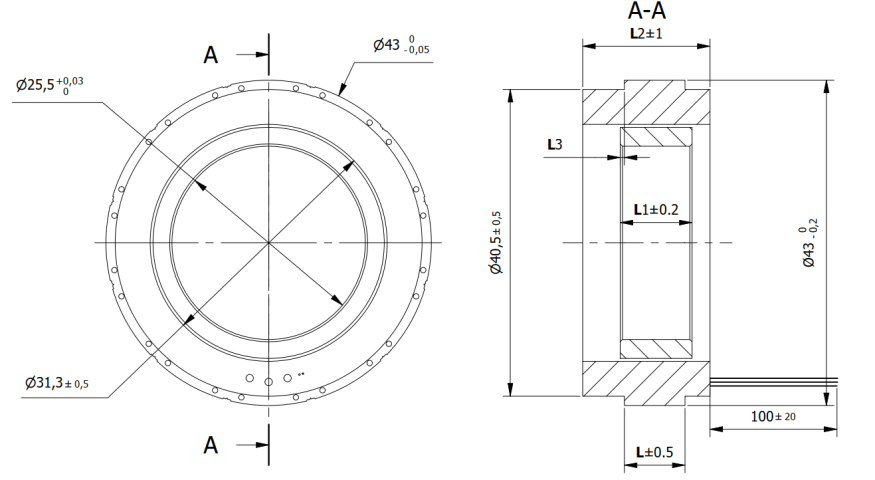

Dimensions

Stator OD	43 mm	Rotor ID	25.5 mm
Rated Voltage	48 Vdc	Rated Torque	0.15 Nm
Max. Peak Torque	0.45 Nm	Rated Speed	5000 rpm
Max. Speed	7300 rpm	n° of Pole	14
n° of Phase	3	Torque Constant	0.077 Nm/A
Rated Current	2 A	Max. Peak Current	6 A
No-Load Current	400 mA	Line to Line Resistance	2.8 Ohm
Line to Line Inductance	1.8 mH	Rotor Inertia	27 gcm²
Back EMF	4.65 Vrms/Krpm	Stator height (L)	8 mm
Rotor height (L1)	9.5 mm	Length (L2)	16.8 mm
Measure (L3)	0.5 mm	Weight	0.070 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
