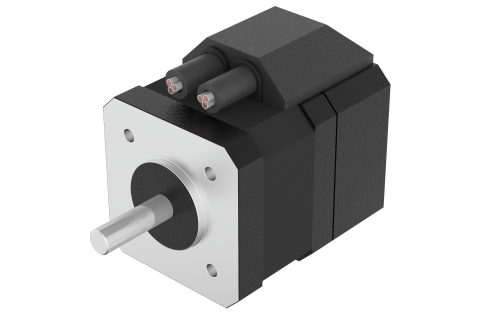

42SVA04

Product Code: 42SVA04

Technical Data

Download

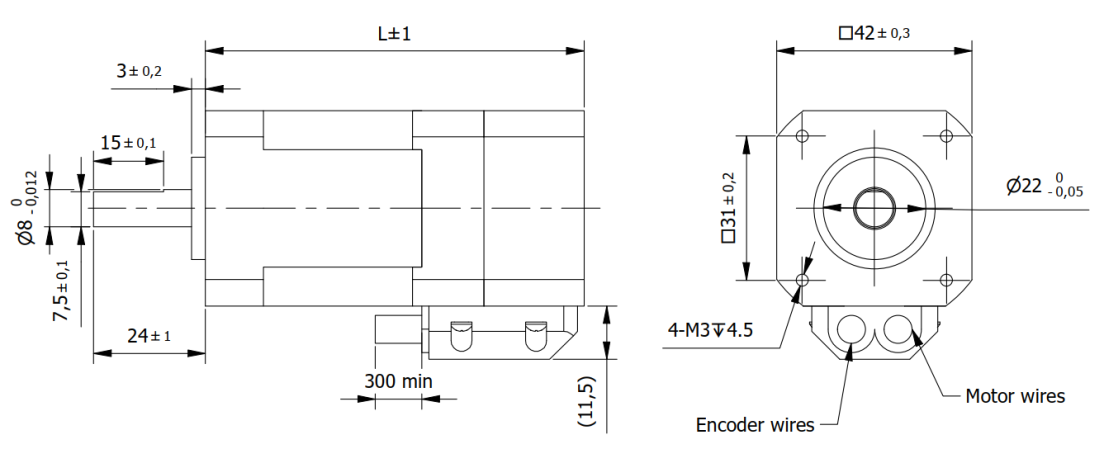

Dimensions

Size	42 mm	Length (L)	121.3 mm
Rated Voltage	24 Vdc	Rated Torque	0.25 Nm
Rated Speed	5000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.75 Nm
Torque Constant	0.031 Nm/A	Rated Current	8 A
Max. Peak Current	24 A	No-Load Current	650 mA
Line to Line Resistance	0.25 Ohm	Line to Line Inductance	0.38 mH
Rotor Inertia	96 gcm²	Weight	0.8 Kg
Encoder	Optical - Incremental 1000 CPR / 2 Channel	Hall Effect Angle	120 °
Insulation Class	B	Protection Class	IP40
Max. Radial Force (20mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20 to +40 °C
