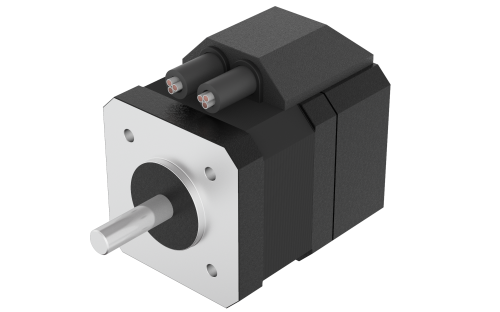

42SVA01

Product Code: 42SVA01

Technical Data

Download

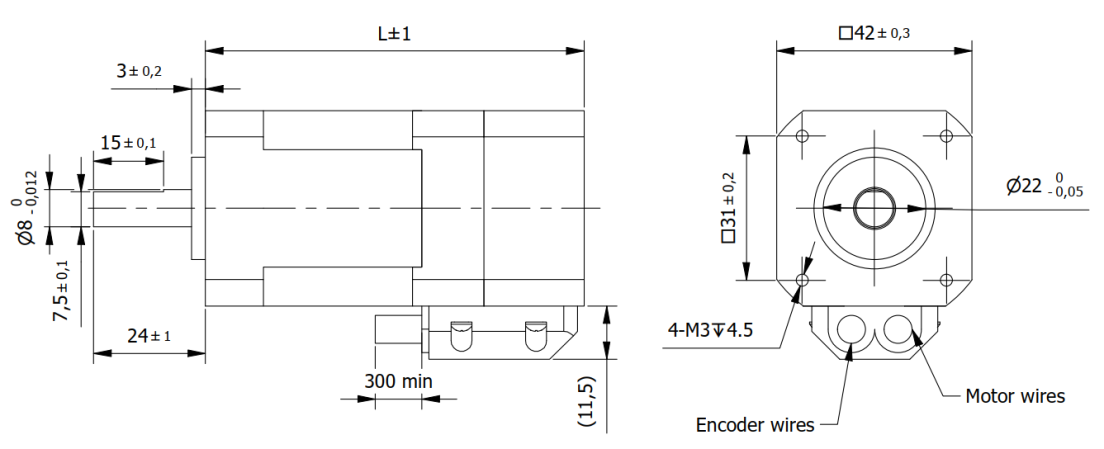

Dimensions

Size	42 mm	Length (L)	61.3 mm
Rated Voltage	24 Vdc	Rated Torque	0.062 Nm
Rated Speed	5000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.19 Nm
Torque Constant	0.03 Nm/A	Rated Current	2.1 A
Max. Peak Current	6.25 A	No-Load Current	500 mA
Line to Line Resistance	1.15 Ohm	Line to Line Inductance	1.75 mH
Rotor Inertia	24 gcm²	Weight	0.3 Kg
Encoder	Optical - Incremental 1000 CPR / 2 Channel	Hall Effect Angle	120 °
Insulation Class	B	Protection Class	IP40
Max. Radial Force (20mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
