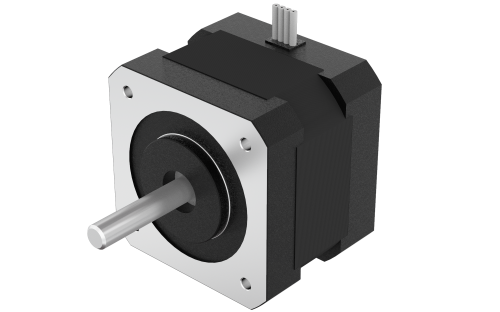

42SH38-2A

Product Code: 42SH38-2A.000

Technical Data

Download

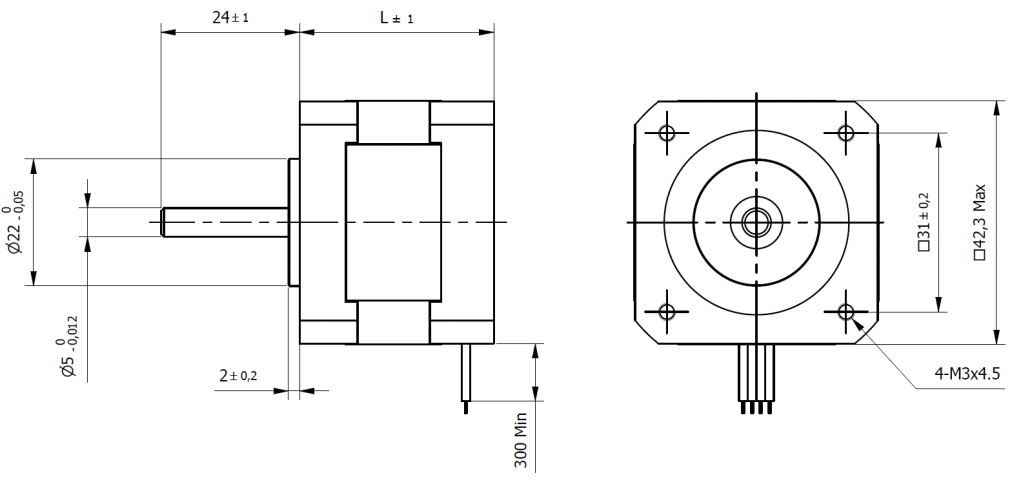

Dimensions

Series	SH	Size	42 mm
Nema	17	Length (L)	39.5 mm
Current/Phase	0.8 A	Holding Torque	0.259 Nm
Step Angle	1.8 °	Rated Voltage	6 Vdc
Resistance/Phase	7.5 Ohm	Inductance/Phase	6.7 mH
Rotor Inertia	54 gcm²	Detent Torque	0.015 Nm
N° of Leads	6	Weight	0.28 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
