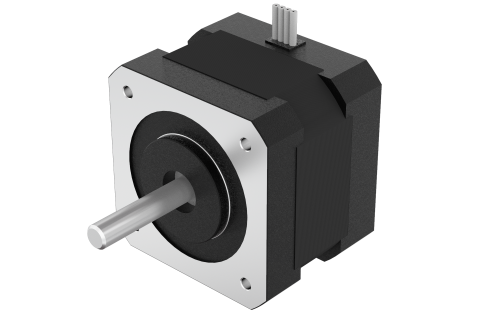

42SH33-1AM

Product Code: 42SH33-1AM.000

Technical Data

Download

Dimensions

Series	SH	Size	42 mm
Nema	17	Length (L)	33.5 mm
Current/Phase	0.95 A	Holding Torque	0.158 Nm
Step Angle	0.9 °	Rated Voltage	4 Vdc
Rotor Inertia	35 gcm²	Weight	0.22 Kg
Resistance/Phase	4.2 Ohm	Inductance/Phase	4 mH
Detent Torque	0.020 Nm	N° of Leads	6
Step Angle accuracy	±5 %	Insulation Class	B
Operating Temperature	-20°C +50°C	Max. Temp. Rise (rated current, 2-phase on)	80 °C
Insulation Resistance (min.500 VDC)	100 Mohm	Dielectric Strength (for 1min.)	500 VAC
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (20mm from flange)	28 N	Max. Axial Force	10 N
Protection Class	IP30
