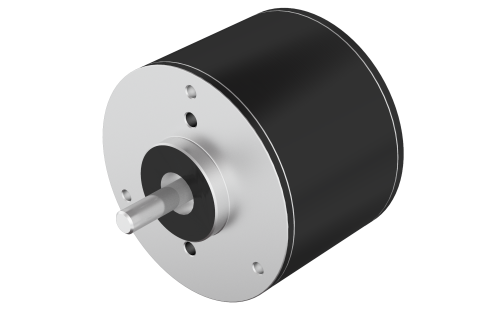

42RBL85

Product Code: 42RBL85.000

Technical Data

Download

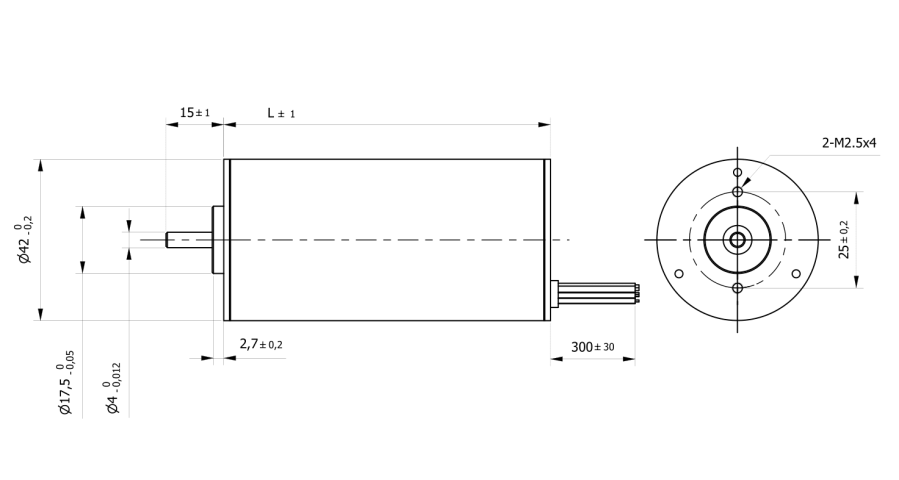

Dimensions

Series	BL	Size	42 mm
Length (L)	85 mm	Weight	0.7 Kg
Rated Voltage	24 Vdc	Rated Torque	0.15 Nm
Rated Speed	4000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.45 Nm
Torque Constant	0.036 Nm/A	Rated Current	4.17 A
Max. Peak Current	11.4 A	No-Load Current	280 mA
Line to Line Resistance	0.71 Ohm	Line to Line Inductance	0.86 mH
Rotor Inertia	84 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
