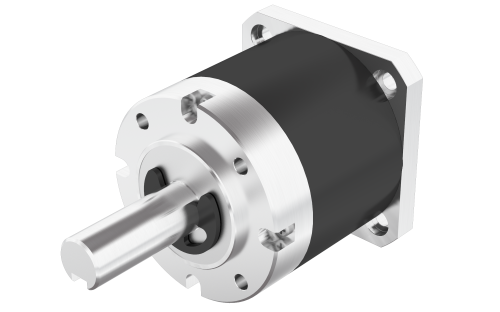

42JMS-2-19.22

Product Code: 42JMS-2-19.22.000

Technical Data

Download

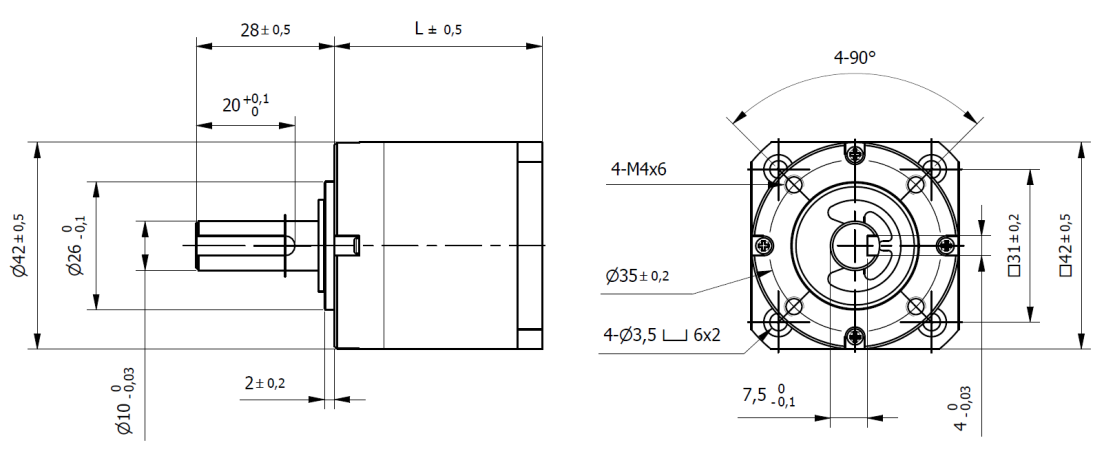

Dimensions

Series	JMS	Size	42 mm
Length (L)	42.1 mm	Stages	2
Reduction Ratio	19.22	Nominal Output Torque	5 Nm
Recommended Input Speed	4000 rpm	Max. Output Torque	15 Nm
Efficiency	81 %	Average Backlash No-load	≤1,2 °
Weight	290 g	Max. Radial load	200 N
Max. Axial load	100 N	Radial Play	<0.06mm
Axial Play	<0.3 mm	Press-Fit Max.	150 N
Operating Temperature	-20°C +80°C	Bearing output	Ball Bearings
