Home Products > Gearboxes > Planetary gearboxes > 42JMS

42JMS-1-5.18

Product Code: 42JMS-1-5.18.000

Technical Data

Download

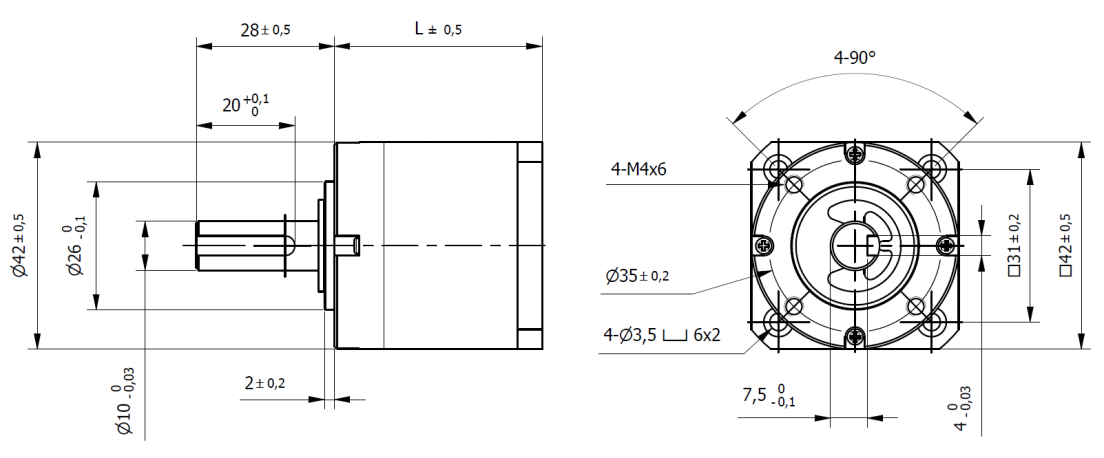

Dimensions

Series	JMS	Size	42 mm
Length (L)	31.5 mm	Stages	1
Reduction Ratio	5.18	Nominal Output Torque	3 Nm
Recommended Input Speed	4000 rpm	Max. Output Torque	9 Nm
Efficiency	90 %	Average Backlash No-load	≤1 °
Weight	208 g	Max. Radial load	200 N
Max. Axial load	100 N	Radial Play	<0.06mm
Axial Play	<0.3 mm	Press-Fit Max.	150 N
Operating Temperature	-20°C +80°C	Bearing output	Ball Bearings
