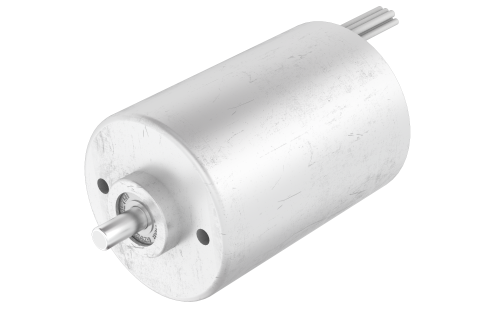

42CBLA60

Product Code: 42CBLA60.000

Technical Data

Download

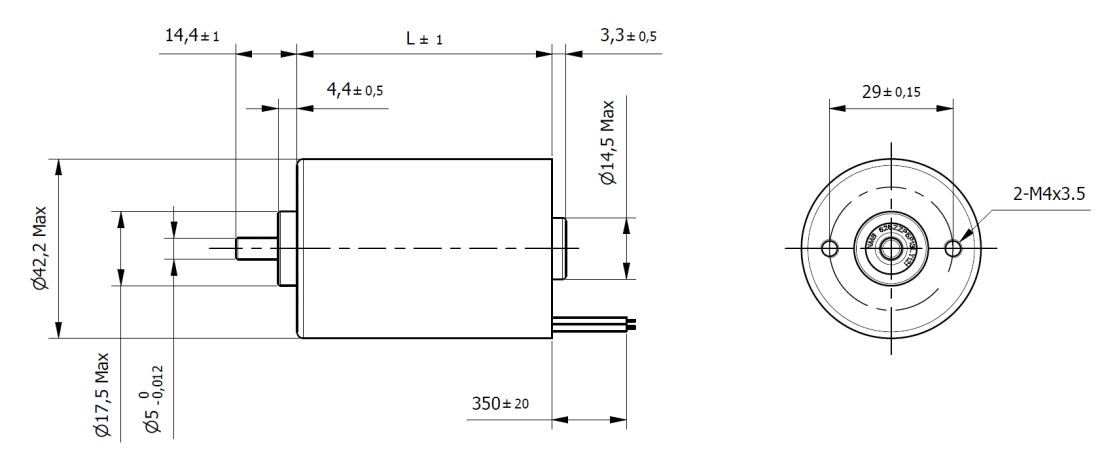

Dimensions

n° of Pole	8	Series	CBL
Size	42 mm	Length (L)	60 mm
Weight	0.35 Kg	Rated Voltage	24 Vdc
Rated Torque	0.12 Nm	Rated Speed	3200 rpm
n° of Phase	3	Max. Peak Torque	0.36 Nm
Torque Constant	0.054 Nm/A	Rated Current	2.1 A
Max. Peak Current	6.3 A	No-Load Current	300 mA
Line to Line Resistance	1.2 Ohm	Line to Line Inductance	1.6 mH
Rotor Inertia	44 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.14 mm	Max. Radial Force (10mm from flange)	25 N
Max. Axial Force	15 N	Dielectric strength (for 1 sec.)	650 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
