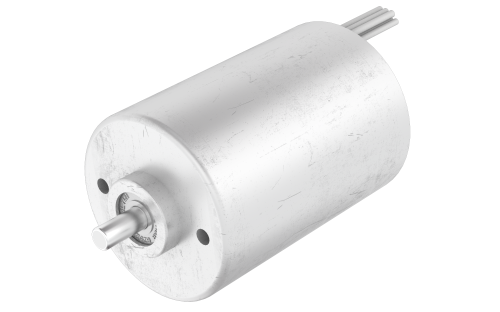

42CBL66

n° of Pole 8 | Size 42 mm | Length (L) 66 mm | Rated Voltage 24 Vdc | Rated Torque 0.15 Nm | Rated Speed 4000 rpm

Product Code: 42CBL66.000

Technical Data

Download

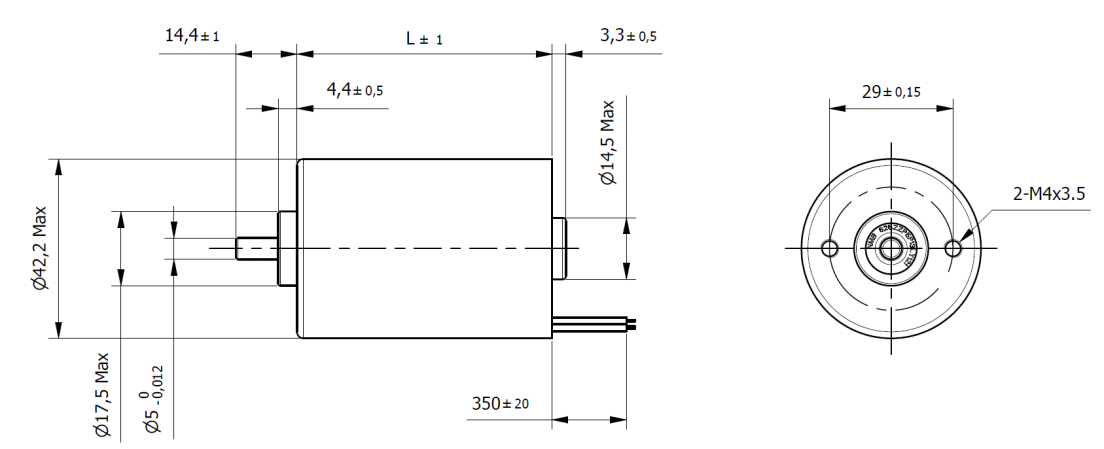

Dimensions

n° of Pole	8	Series	CBL
Size	42 mm	Length (L)	66 mm
Weight	0.44 Kg	Rated Voltage	24 Vdc
Rated Torque	0.15 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	045 Nm
Torque Constant	0.04 Nm/A	Rated Current	3.75 A
Max. Peak Current	11.2 A	No-Load Current	400 mA
Line to Line Resistance	0.75 Ohm	Line to Line Inductance	0.8 mH
Rotor Inertia	55 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.14 mm	Max. Radial Force (10mm from flange)	25 N
Max. Axial Force	15 N	Dielectric strength (for 1 sec.)	650 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
