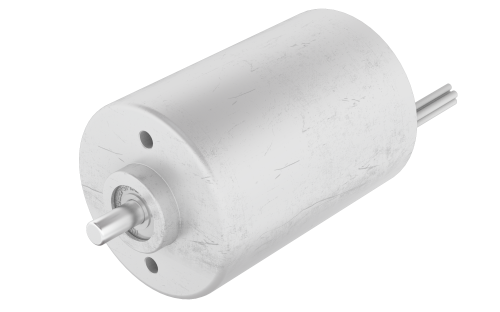

42CBL60-IE

Product Code: 42CBL60-IE.000

Technical Data

Download

Size	42 mm	Length (L)	60 mm
Rated Torque	0.068 Nm	Rated Current	2.13 A
Rated Voltage	24 Vdc	Rated Speed	5900 rpm
n° of Pole	4	n° of Phase	3
Max. Peak Torque	0.2 Nm	Torque Constant	0.032 Nm/A
Max. Peak Current	6.6 A	No-Load Current	250 mA
Line to Line Resistance	0.82 Ohm	Line to Line Inductance	0.75 mH
Rotor Inertia	44 gcm²	Weight	0.35 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	15 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
