Home Products > Brushless DC motors > Brushless DC Slotted motors > 42BL -BLA -BLB

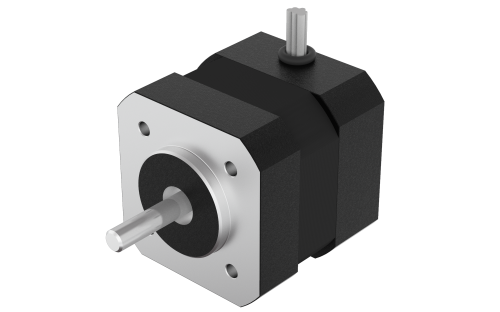

42BLA04

n° of Pole 10 | Size 42 mm | Length (L) 100.3 mm | Rated Voltage 24 Vdc | Rated Torque 0.36 Nm | Rated Speed 3000 rpm

Product Code: 42BLA04.000

Technical Data

Download

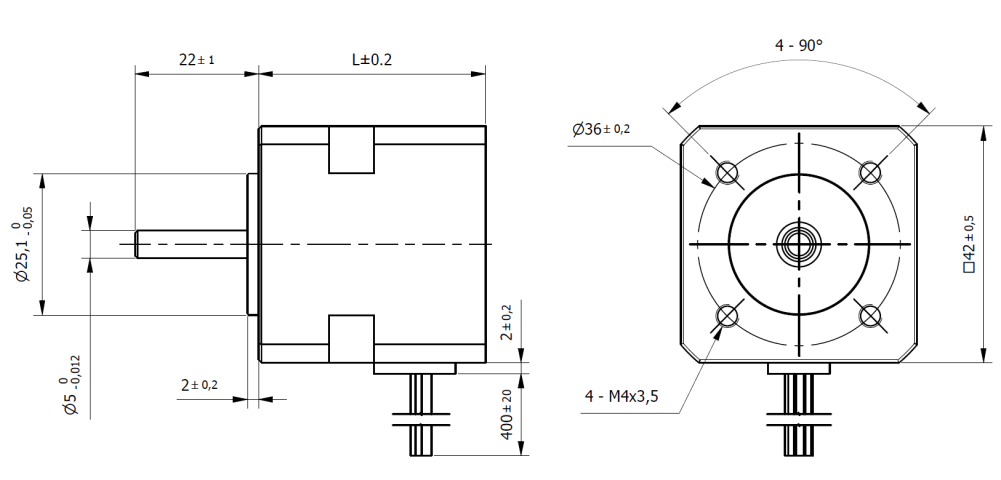

Dimensions

n° of Pole	10	Series	BL
Size	42 mm	Length (L)	100.3 mm
Weight	0.85 Kg	Rated Voltage	24 Vdc
Rated Torque	0.36 Nm	Rated Speed	3000 rpm
n° of Phase	3	Max. Peak Torque	1.08 Nm
Torque Constant	0.057 Nm/A	Rated Current	6.32 A
Max. Peak Current	19 A	No-Load Current	490 mA
Line to Line Resistance	0.48 Ohm	Line to Line Inductance	0.44 mH
Rotor Inertia	207 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
