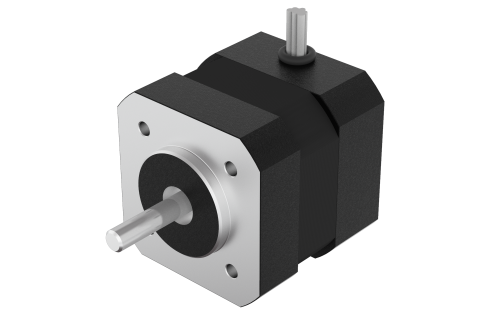

42BLA03

n° of Pole 10 | Size 42 mm | Length (L) 80.3 mm | Rated Voltage 24 Vdc | Rated Torque 0.26 Nm | Rated Speed 3000 rpm

Product Code: 42BLA03.000

Technical Data

Download

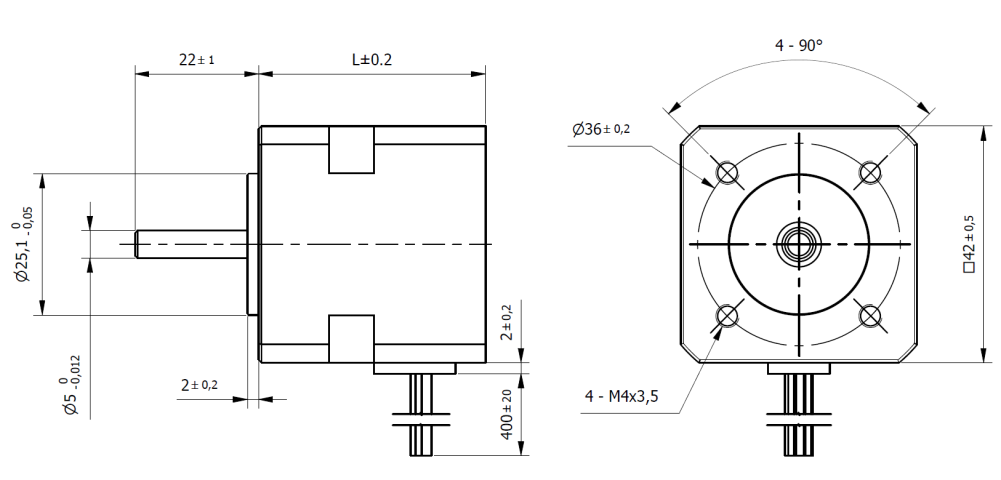

Dimensions

n° of Pole	10	Series	BL
Size	42 mm	Length (L)	80.3 mm
Weight	0.65 Kg	Rated Voltage	24 Vdc
Rated Torque	0.26 Nm	Rated Speed	3000 rpm
n° of Phase	3	Max. Peak Torque	0.78 Nm
Torque Constant	0.058 Nm/A	Rated Current	4.48 A
Max. Peak Current	13.5 A	No-Load Current	430 mA
Line to Line Resistance	0.7 Ohm	Line to Line Inductance	0.58 mH
Rotor Inertia	154 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
