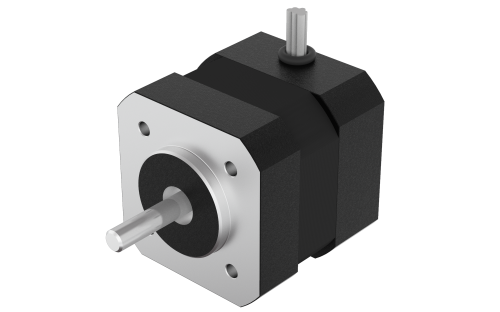

42BLA02

n° of Pole 10 | Size 42 mm | Length (L) 60.3 mm | Rated Voltage 24 Vdc | Rated Torque 0.16 Nm | Rated Speed 3000 rpm

Product Code: 42BLA02.000

Technical Data

Download

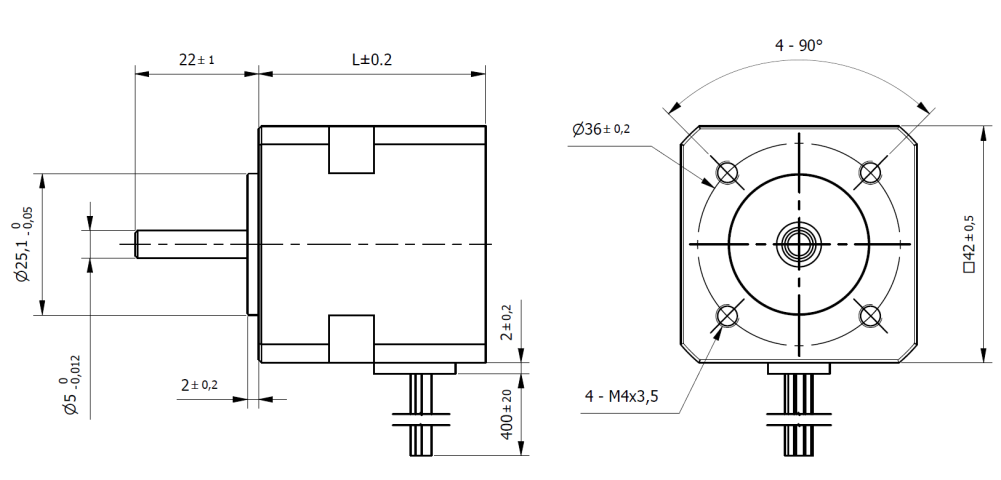

Dimensions

n° of Pole	10	Series	BL
Size	42 mm	Length (L)	60.3 mm
Weight	0.45 Kg	Rated Voltage	24 Vdc
Rated Torque	0.16 Nm	Rated Speed	3000 rpm
n° of Phase	3	Max. Peak Torque	0.48 Nm
Torque Constant	0.059 Nm/A	Rated Current	2.71 A
Max. Peak Current	8.3 A	No-Load Current	450 mA
Line to Line Resistance	1.1 Ohm	Line to Line Inductance	0.96 mH
Rotor Inertia	101 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
