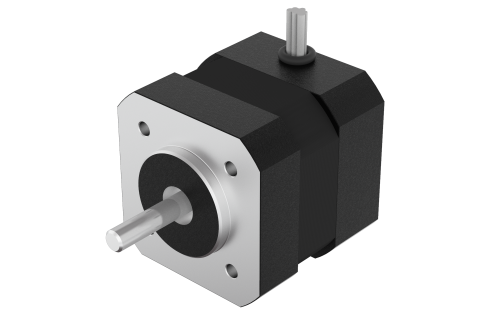

42BL61

n° of Pole 8 | Size 42 mm | Length (L) 61 mm | Rated Voltage 24 Vdc | Rated Torque 0.125 Nm | Rated Speed 4000 rpm

Product Code: 42BL61.000

Technical Data

Download

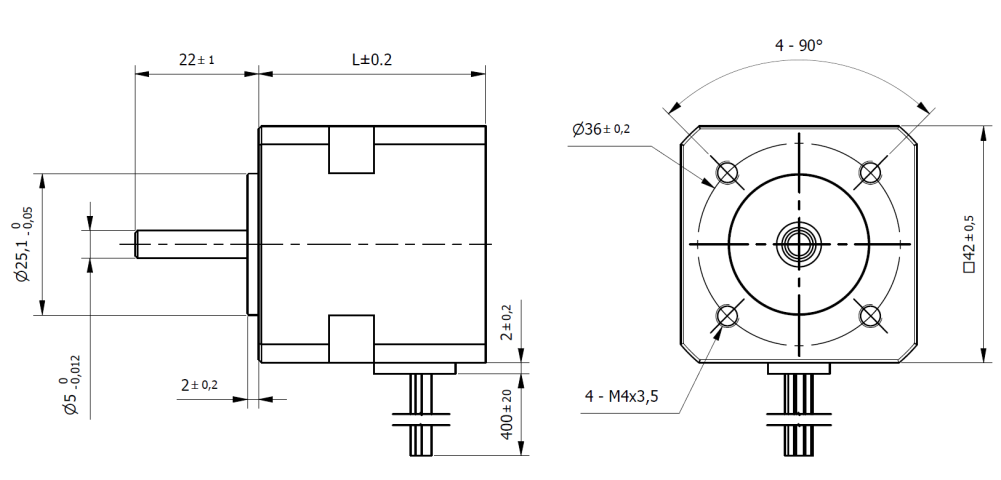

Dimensions

n° of Pole	8	Series	BL
Size	42 mm	Length (L)	61 mm
Weight	0.45 Kg	Rated Voltage	24 Vdc
Rated Torque	0.125 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.38 Nm
Torque Constant	0.036 Nm/A	Rated Current	3.47 A
Max. Peak Current	10.8 A	No-Load Current	240 mA
Line to Line Resistance	0.8 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	48 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
