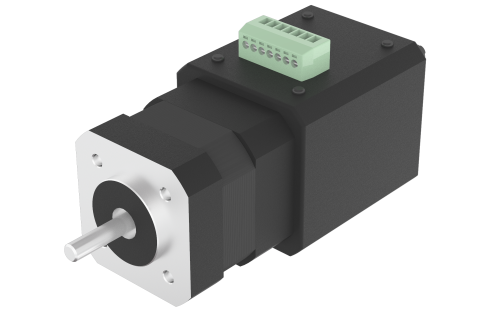

42BL61-IE

Product Code: 42BL61-IE.000

Technical Data

Download

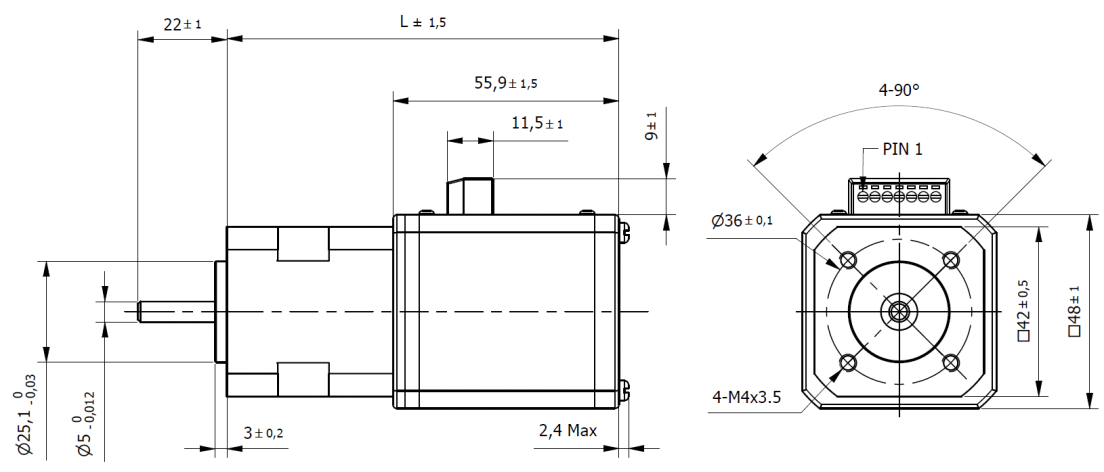

Dimensions

Size	42 mm	Length (L)	102 mm
Rated Torque	0.125 Nm	Rated Current	3.47 A
Rated Voltage	24 Vdc	Rated Speed	4000 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.37 Nm	Torque Constant	0.036 Nm/A
Max. Peak Current	10.8 A	No-Load Current	250 mA
Line to Line Resistance	0.8 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	48 gcm²	Weight	0.65 Kg
Hall Effect Angle	IP40 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	120
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
