n° of Pole
8
Series
BL
Size
42 mm
Length (L)
41 mm
Weight
0.3 Kg
Rated Voltage
24 Vdc
Rated Torque
0.0625 Nm
Rated Speed
4000 rpm
n° of Phase
3
Max. Peak Torque
0.19 Nm
Torque Constant
0.035 Nm/A
Rated Current
1.79 A
Max. Peak Current
6 A
No-Load Current
200 mA
Line to Line Resistance
1.5 Ohm
Line to Line Inductance
2.1 mH
Rotor Inertia
24 gcm
2
Hall Effect Angle
120 °
Shaft run out
0.025 mm
Insulation Class
B
Protection Class
IP40
Radial Play (450g load)
0.02 mm
Axial Play (450g load)
0.08 mm
Max. Radial Force (10mm from flange)
28 N
Max. Axial Force
10 N
Dielectric Strength (for 1min.)
500 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
Technical Files
Datasheet
3D STP file
Other documents
ROHS - Verification report BLDC
REACH - Assessment Report BLDC & Stepper
CE Europe Certification - BLDC 42-220mm
Home
Products
>
Brushless DC motors
>
Brushless DC Slotted motors
>
42BL -BLA -BLB

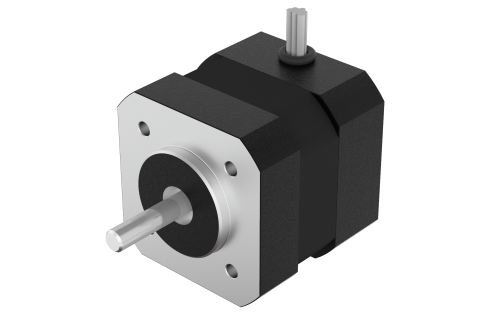

42BL41
n° of Pole 8 | Size 42 mm | Length (L) 41 mm | Rated Voltage 24 Vdc | Rated Torque 0.0625 Nm | Rated Speed 4000 rpm
Product Code: 42BL41.000
Buy online:
Technical Data
Download

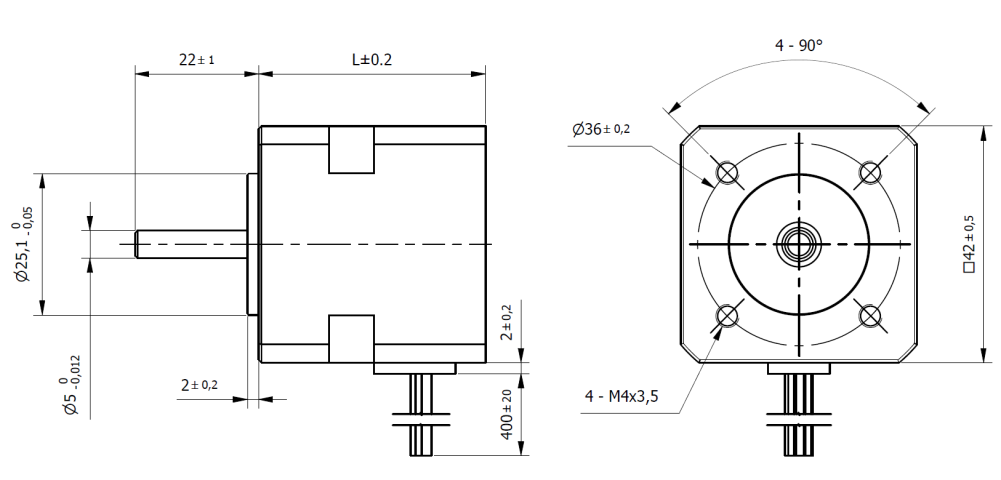

Dimensions
n° of Pole
8
Series
BL
Size
42 mm
Length (L)
41 mm
Weight
0.3 Kg
Rated Voltage
24 Vdc
Rated Torque
0.0625 Nm
Rated Speed
4000 rpm
n° of Phase
3
Max. Peak Torque
0.19 Nm
Torque Constant
0.035 Nm/A
Rated Current
1.79 A
Max. Peak Current
6 A
No-Load Current
200 mA
Line to Line Resistance
1.5 Ohm
Line to Line Inductance
2.1 mH
Rotor Inertia
24 gcm
2
Hall Effect Angle
120 °
Shaft run out
0.025 mm
Insulation Class
B
Protection Class
IP40
Radial Play (450g load)
0.02 mm
Axial Play (450g load)
0.08 mm
Max. Radial Force (10mm from flange)
28 N
Max. Axial Force
10 N
Dielectric Strength (for 1min.)
500 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
