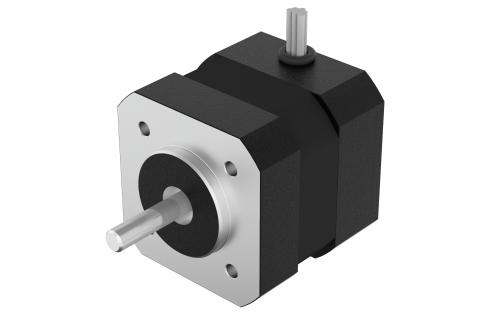

42BL100

n° of Pole 8 | Size 42 mm | Length (L) 100 mm | Rated Voltage 24 Vdc | Rated Torque 0.25 Nm | Rated Speed 4000 rpm

Product Code: 42BL100.000

Buy online:

Technical Data

Download

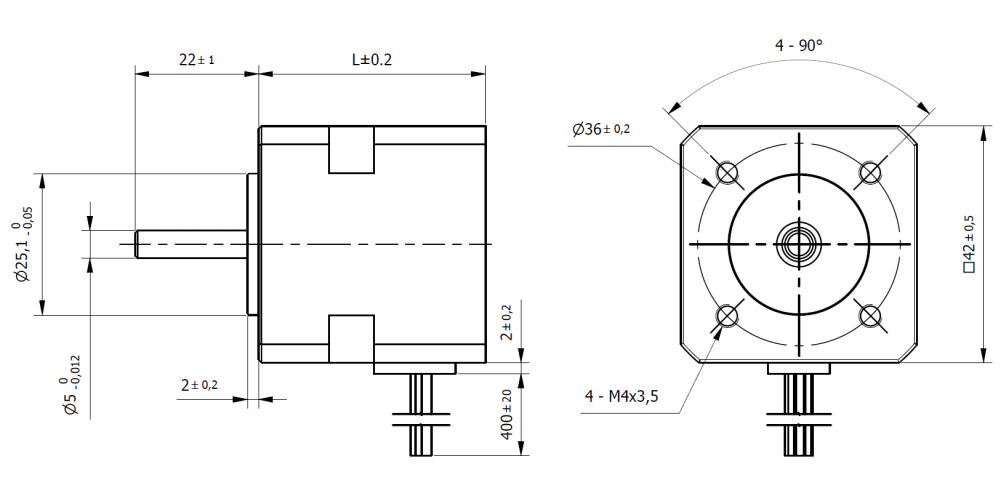

Dimensions

n° of Pole	8	Series	BL
Size	42 mm	Length (L)	100 mm
Weight	0.8 Kg	Rated Voltage	24 Vdc
Rated Torque	0.25 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.75 Nm
Torque Constant	0.036 Nm/A	Rated Current	6.94 A
Max. Peak Current	21.7 A	No-Load Current	450 mA
Line to Line Resistance	0.3 Ohm	Line to Line Inductance	0.5 mH
Rotor Inertia	96 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
