Home Products > Motors with integrated Controller > Brushless DC motors with Speed controller > 42BL -IE

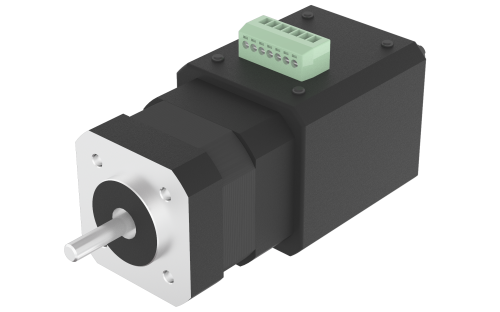

42BL100-IE

Product Code: 42BL100-IE.000

Technical Data

Download

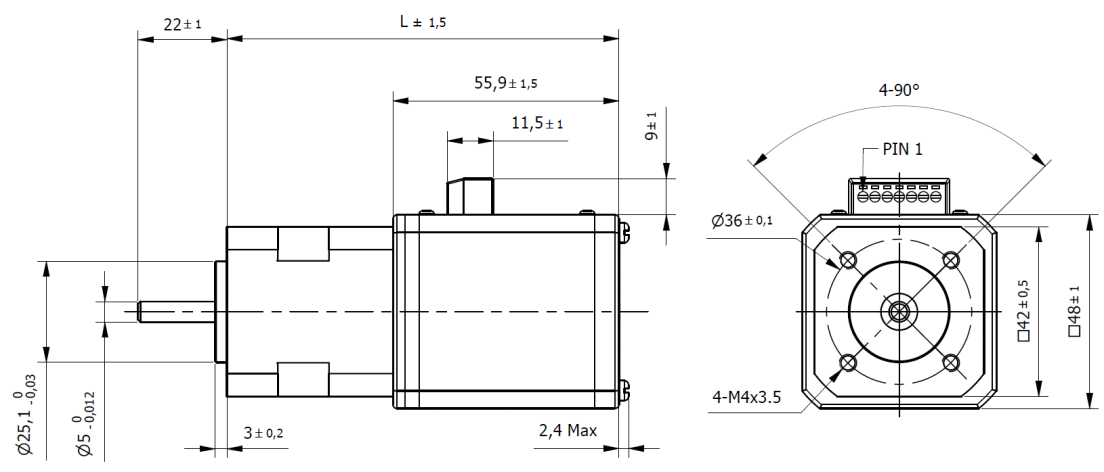

Dimensions

Size	42 mm	Length (L)	146 mm
Rated Torque	0.25 Nm	Rated Current	6.94 A
Rated Voltage	24 Vdc	Rated Speed	4000 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.74 Nm	Torque Constant	0.036 Nm/A
Max. Peak Current	21.7 A	No-Load Current	450 mA
Line to Line Resistance	0.3 Ohm	Line to Line Inductance	0.5 mH
Rotor Inertia	96 gcm²	Weight	1 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
