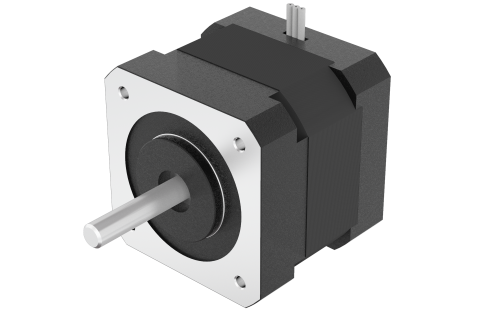

423P39-2403A

Product Code: 423P39-2403A.000

Technical Data

Download

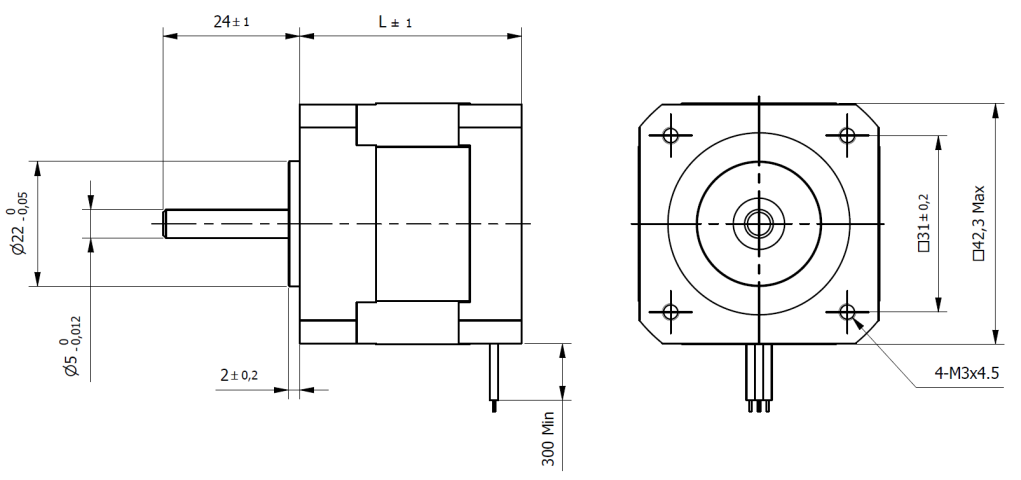

Dimensions

Size	42 mm	Nema	17
Length (L)	39 mm	Current/Phase	2.4 A
Holding Torque	0.2 Nm	Step Angle	1.2 °
Rated Voltage	2.88 Vdc	Resistance/Phase	1.2 Ohm
Inductance/Phase	0.8 mH	Rotor Inertia	54 gcm²
N° of Leads	3	Weight	0.28 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
