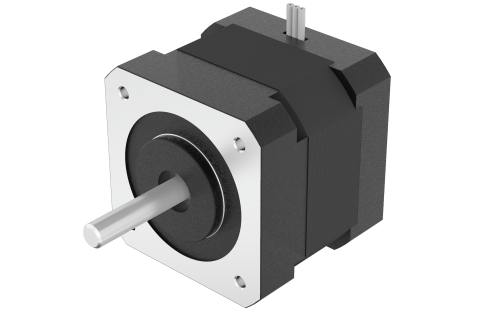

423P24-0903A

Product Code: 423P24-0903A.000

Technical Data

Download

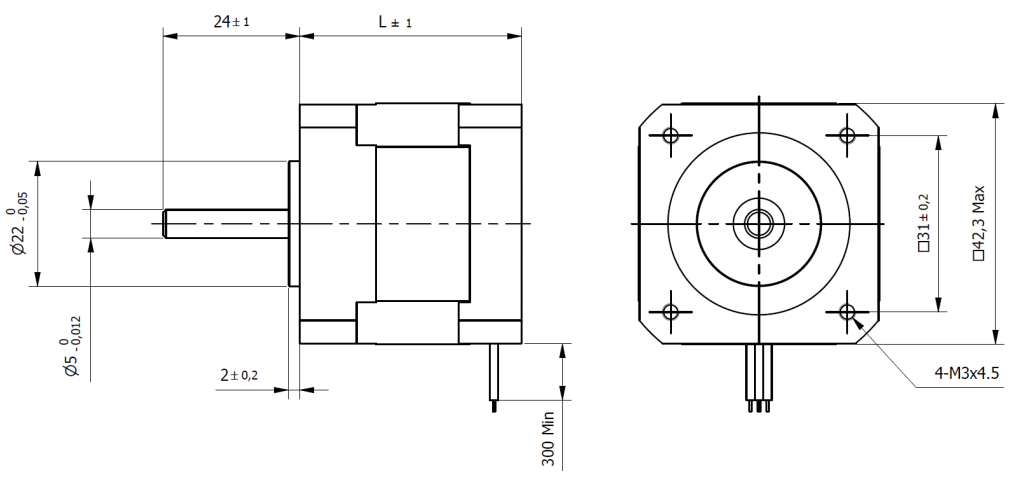

Dimensions

Size	42 mm	Nema	17
Length (L)	24 mm	Current/Phase	0.9 A
Holding Torque	0.08 Nm	Step Angle	1.2 °
Rated Voltage	5.58 Vdc	Resistance/Phase	6.2 Ohm
Inductance/Phase	3.2 mH	Rotor Inertia	20 gcm²
N° of Leads	3	Weight	0.14 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
