Home Products > Brushless DC motors > Brushless DC Slotless motors > 40SBL

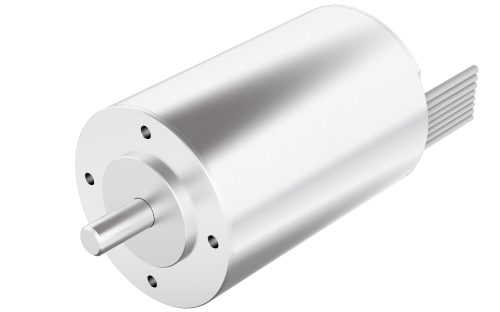

40SBL65

Product Code: 40SBL65.000

Technical Data

Download

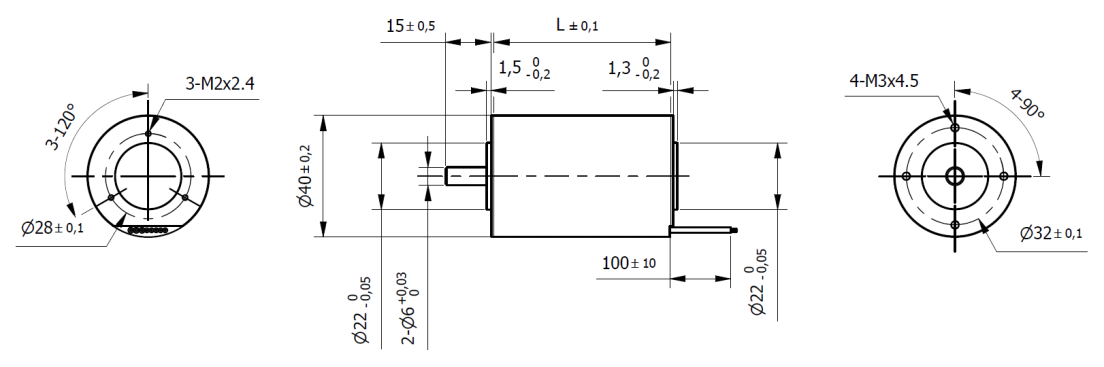

Dimensions

Series	SBL	Size	40 mm
Length (L)	65 mm	Length with Hall Sensors	55 mm
Rated Voltage	24 Vdc	Rated Torque	0.2 Nm
Rated Speed	8000 rpm	n° of Pole	4
n° of Phase	3	Max. Peak Torque	0.6 Nm
Torque Constant	26 mNm/A	Rated Current	8 A
Max. Peak Current	24 A	No-Load Current	500 mA
Line to Line Resistance	0.21 Ohm	Line to Line Inductance	0.037 mH
Rotor Inertia	85 gcm²	Weight	400 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	F	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	28 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
