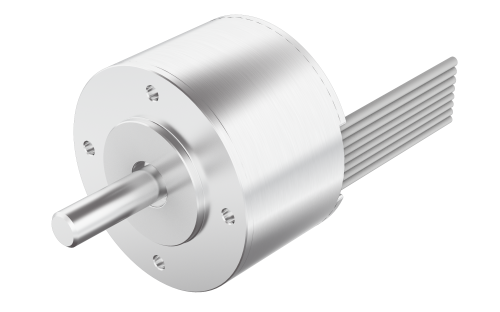

40BL36-18V

Product Code: 40BL36-18V.000

Technical Data

Download

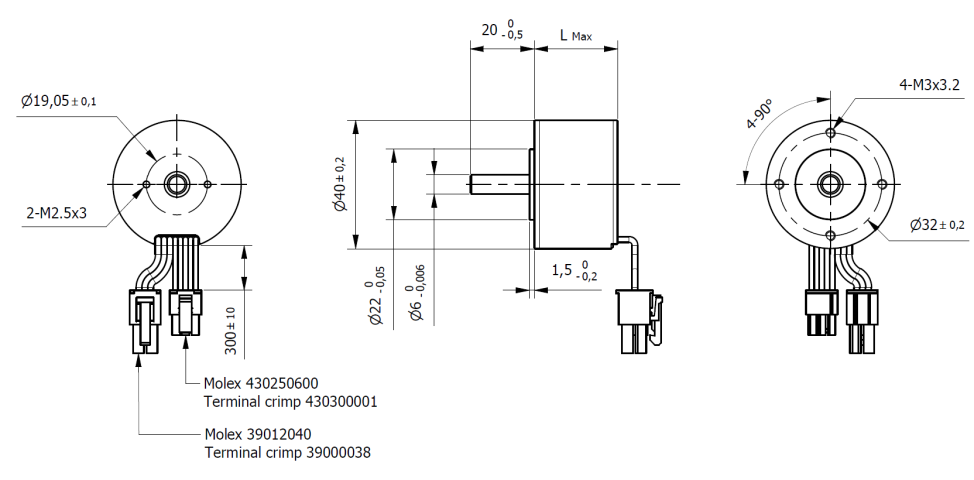

Dimensions

Series	BL	Size	40 mm
Length (L)	36 mm	Weight	0.24 Kg
Rated Voltage	18 Vdc	Rated Torque	0.069 Nm
Rated Speed	8230 rpm	n° of Pole	14
n° of Phase	3	Max. Peak Torque	0.21 Nm
Torque Constant	0.017 Nm/A	Rated Current	4.06 A
Max. Peak Current	12.3 A	No-Load Current	354 mA
Line to Line Resistance	0.34 Ohm	Line to Line Inductance	0.18 mH
Rotor Inertia	24.2 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	F
Protection Class	IP40	Radial Play (450g load)	Preloaded mm
Axial Play (450g load)	0.15 mm	Max. Radial Force (5mm from flange)	15 N
Max. Axial Force	5 N	Dielectric strength (for 1 sec.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
