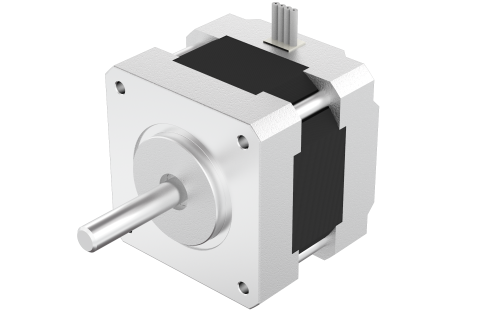

39SH34-0654A

Product Code: 39SH34-0654A.000

Technical Data

Download

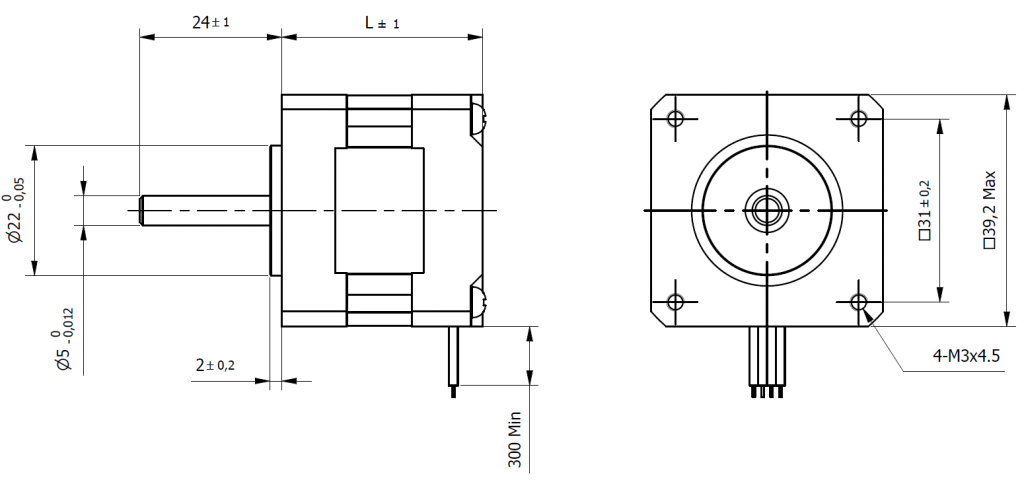

Dimensions

Series	SH	Size	39 mm
Nema	16	Length (L)	34 mm
Current/Phase	0.65 A	Holding Torque	0.18 Nm
Step Angle	1.8 °	Rated Voltage	4.55 Vdc
Resistance/Phase	7 Ohm	Inductance/Phase	9.3 mH
Rotor Inertia	20 gcm²	Detent Torque	0.012 Nm
N° of Leads	4	Weight	0.18 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
