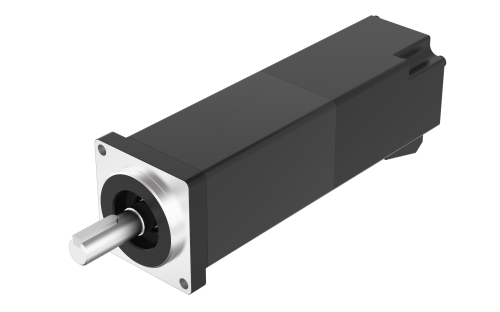

38SV10-48V-30EA2

Product Code: 38SV10-48V-30EA2

Technical Data

Download

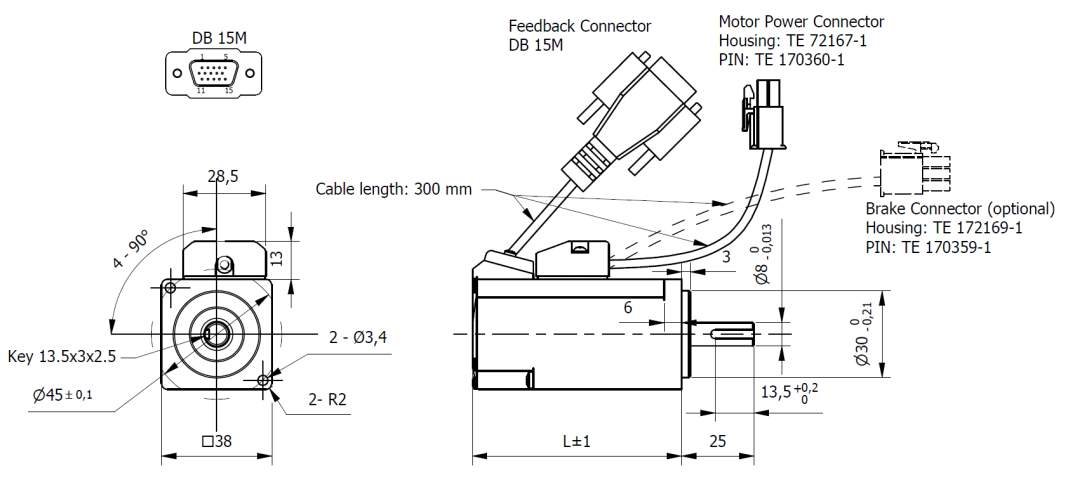

Dimensions

Size	38 mm	Length (L)	122 mm
Nominal Voltage	48 VDC	Rated Torque	0.32 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	100 Watt
No-Load Speed	6800±10% rpm	Max. Peak Torque	0.96 Nm
Torque Constant	0.083 Nm/A	Rated Current	4.3 A
Max. Peak Current	12.9 A	No-Load Current	0.4 A
Back EMF constant	5 V/kRPM	Line to Line Resistance	0.88±10% Ohm
Line to Line Inductance	0.78±20% mH	Rotor Inertia	0.05 Kgcm²
Brake	24VDC - 0.35Nm	Weight	0.75 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.14mm (max.4N) mm
Max. Radial Force (14mm from flange)	69 N	Max. Axial Force	59 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
