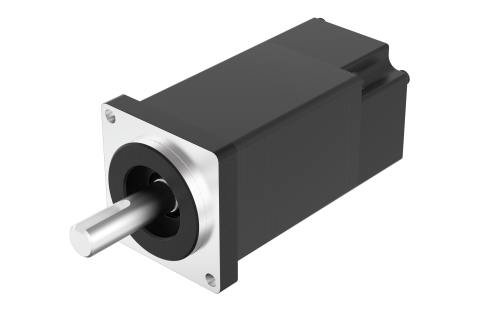

38SV10-220V-30EA1

Product Code: 38SV10-220V-30EA1

Technical Data

Download

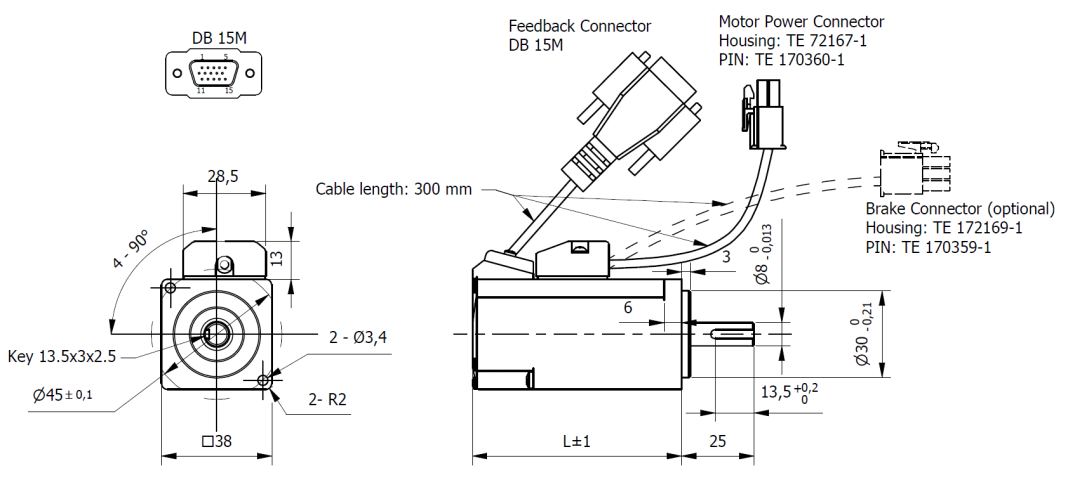

Dimensions

Size	38 mm	Length (L)	88 mm
Nominal Voltage	220 VAC	Rated Torque	0.32 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	100 Watt
No-Load Speed	10500±10% rpm	Max. Peak Torque	0.96 Nm
Torque Constant	0.034 Nm/A	Rated Current	1 A
Max. Peak Current	3 A	No-Load Current	0.1 A
Back EMF constant	21 V/kRPM	Line to Line Resistance	17.5±10% Ohm
Line to Line Inductance	12.4±20% mH	Rotor Inertia	0.04 Kgcm²
Weight	0.5 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.14mm (max.4N) mm	Max. Radial Force (14mm from flange)	69 N
Max. Axial Force	59 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
