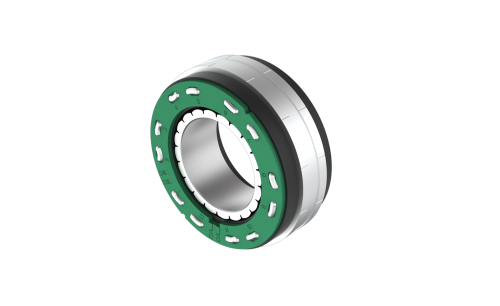

38BLF14-48V

Product Code: 38BLF14-48V

Technical Data

Download

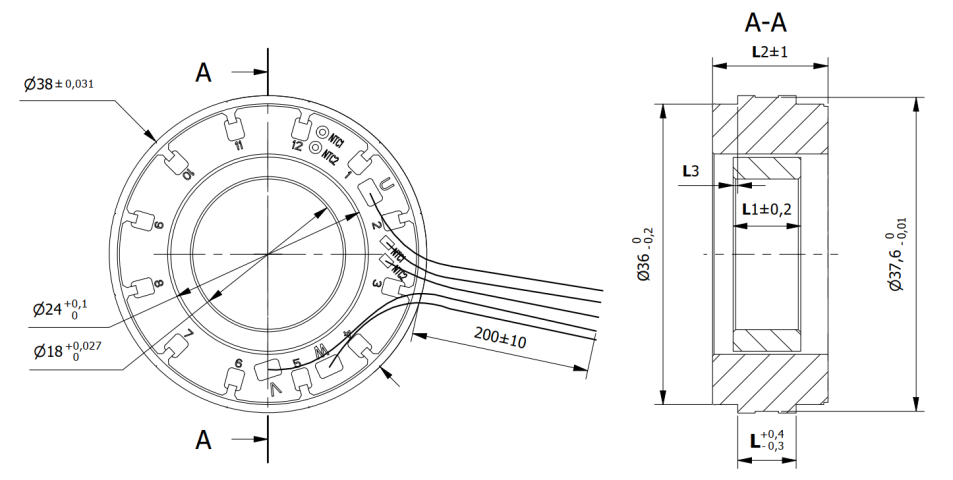

Dimensions

Stator OD	38 mm	Rotor ID	18 mm
Rated Voltage	48 Vdc	Rated Torque	0.23 Nm
Max. Peak Torque	0.69 Nm	Rated Speed	5000 rpm
Max. Speed	7500 rpm	n° of Pole	14
n° of Phase	3	Torque Constant	0.074 Nm/A
Rated Current	3.5 A	Max. Peak Current	10.5 A
No-Load Current	400 mA	Line to Line Resistance	1.24 Ohm
Line to Line Inductance	1.3 mH	Rotor Inertia	19.2 gcm²
Back EMF	4.5 Vrms/Krpm	Stator height (L)	14 mm
Rotor height (L1)	16.1 mm	Length (L2)	20.8 mm
Measure (L3)	1 mm	Weight	0.112 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
